PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam
PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam

Large Image :  PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam Get Best Price

Product Details:

Place of Origin: China
Brand Name: Huayixin or OEM
Certification: CE/Rosh/ISO9001
Model Number: ADSS

Payment & Shipping Terms:

Minimum Order Quantity: 3KM
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 5-8 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000KM Per month
Detailed Product Description
Product Name: ADSS Optical Fiber Cable Fiber Options:: G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count:: 2-288 Cores Material Of Jacket:: Black Polyethylene (PE)
Strength Member:: Kevlar Yarn Span: 50/100/150/200/300Meters
Jacket: Single And Double OEM: Availabel
High Light:

PE Outdoor Fiber Optic Cable 50M Spam

,

PE Outdoor Fiber Optic Cable 100 Spam

,

50M Spam ADSS Fiber Cable

ADSS fiber optic cable 12 core 24 core 48 core 96 core 144 core 50M Spam 100 Spam ADSS optic fiber cable

Features
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.

Product Parameters
Temperature Range
Transport/storage temp
-30℃~+65℃
Installation temp
-20℃~+50℃
Operation temp
-30℃~+65℃
Structural Characteristics
Fiber count
2~144
Loose tube
Colored fiber in PBT loose tube,filled with fiber gel
Central strength member
Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
Waterproof layer
Cable core filled with cable gel or water blocking tape, water blocking yarns
High-strength aramid yarn
Offers very high tensile strength, small diameter and light weight to fit different climate conditions and laying spans
Sheath
Anti-tracking(AT) material or Polyethylene(PE)



Cable Performance Parameter
Span meter 200 300 400
Related Strength Tension(RTS) 17.5 kn 20.6 kn 28 kn
Max Allowable Tension(MAT) 6.9 kn 8.2 kn 11.5 kn
Allowable Crush Resistance Long Term: 1100 n/100mm Long Term: 1100 n/100mm Long Term: 1100 n/100mm
Short Term: 2200 n/100mm Short Term: 2200 n/100mm Short Term: 2200 n/100mm
Minimum Bending Radius Operating: 220 mm Operating: 220 mm Operating: 220 mm
Installlation: 360 mm Installlation: 360 mm Installlation: 360 mm
Temperature Range Operating: -40 /+70℃ Operating: -40 /+70℃ Operating: -40 / +70℃
Installlation: -15 / +60℃ Installlation: -15 / +60℃ Installlation: -15 / +60℃
Out Sheath Material Electrical Resistance AT (Borealis material 6081) Sheath
Note ice accretion 5MM,weed speed:30M/S
PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 0PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 1
Aramid ,Non-metal FRP Strenghth
1. High quality Import Aramid Yarn
2.Center FRP Strength,Anti-electromagnetic interference
3.Span 100M 120m 140M 160M to 1000M
Fiber Core
1.The fiber optic cable adopts the well-known brand A-class core, which has high transmission rate, long distance and small
attenuation.
2. Single Mode/Muli Mode Options
3. 12 different Colors Option, can do as your request
PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 2                                                MORE PRODUCT

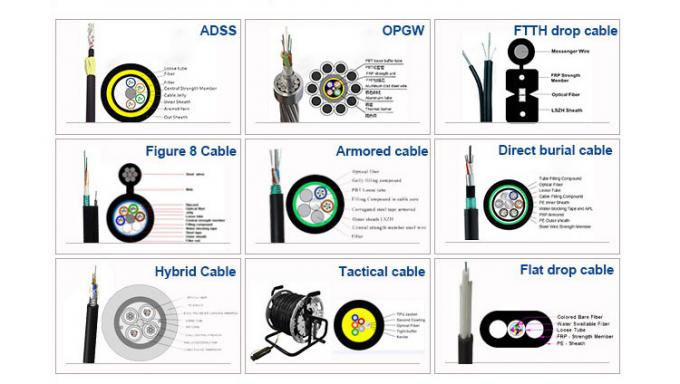

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 3

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 4

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 5

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 6

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 7

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 8

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 9

PE Outdoor Fiber Optic Cable , ADSS Fiber Cable 50M Spam 100 Spam 10
