Fiber Type: | Single Mode G652D/G657A Serial | Jacket: | LZSH Jacket Or PE/PVC Jacket |
---|---|---|---|
Fiber Conductors: | 1-4 Cores | Application: | Indoor And Outdoor |
Fiber Type: | YOFC /Fiberhome Or Other | OEM: | Avaiable |
Shipping Method: | By Sea | Warranty: | 10 Years |
High Light: | LZSH Jacket 2 Core Fiber Drop Cable,LZSH 2 Core Fiber Drop Cable G652D G657a1,GJXH GJYXCH LZSH Fiber Drop Cable |

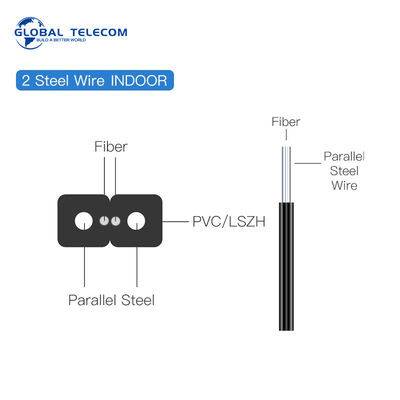

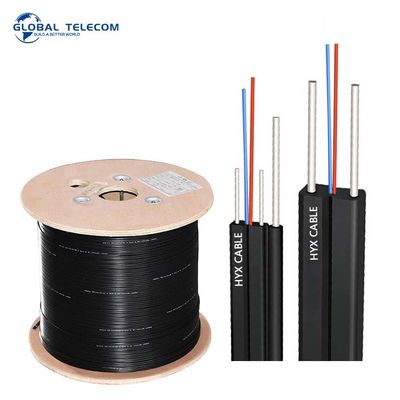

GJXH GJYXCH ftth indoor outdoor 2 core fiber drop cable G652D G657A1 fiber Steel center FRP drop cable use YOFC and FiberHome fiber
Item
|
Technology parameter
|
||
Cable type
|
GJYXCH-1B6
|
GJYXCH-2B6
|
GJYXCH-4B6
|
Cable specification
|
5.2×2.0
|
||
Fiber type
|
9/125 (G.657A2)
|
||
Fiber counts
|
1
|
2
|
4
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
Sheath color
|
Black
|
||
Sheath material
|
LSZH
|
||
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
Cable weight Kg/km
|
Approx. 19.5
|
||
Min. bending radius mm
|
120
|
||
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
Short term tensile N
|
600
|
||
Long term tensile N
|
300
|
||
Short term crush N/100mm
|
2200
|
||
Long term crush N/100mm
|
1100
|
||
Operation temperature ℃
|
-20~+60
|
Item
|
Technology parameter
|
||
Cable type
|
GJYXFCH-1B6
|
GJYXFCH-2B6
|
GJYXFCH-4B6
|
Cable specification
|
5.2×2.0
|
||
Fiber type
|
9/125 (G.657A2)
|
||
Fiber counts
|
1
|
2
|
4
|
Fiber color
|
Red
|
Blue, orange
|
Blue, orange, green, brown
|
Sheath color
|
Black
|
||
Sheath material
|
LSZH
|
||
Cable dimension mm
|
5.2(±0.2)*2.0(±0.2)
|
||
Cable weight Kg/km
|
Approx. 13.5
|
||
Min. bending radius mm
|
120
|
||
Min. bending radius mm
(Excluding messenger wire) |
10 (Static)
25 (Dynamic) |
||
Attenuation dB/km
|
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm
|
||
Short term tensile N
|
230
|
||
Long term tensile N
|
110
|
||
Short term crush N/100mm
|
1000
|
||
Long term crush N/100mm
|
500
|
||
Operation temperature ℃
|
-20~+60
|
