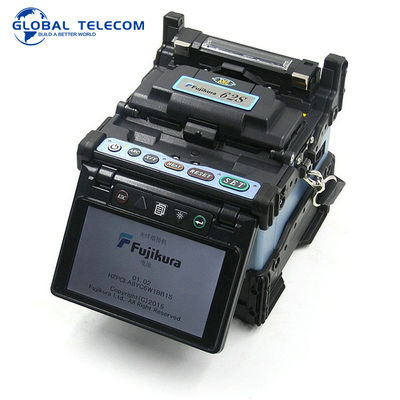

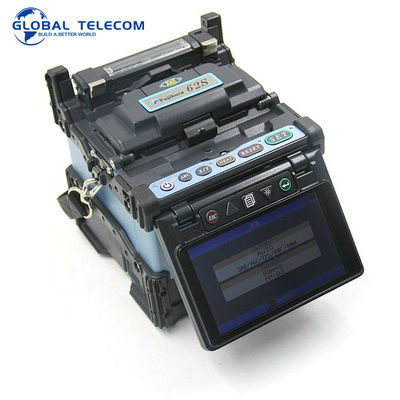

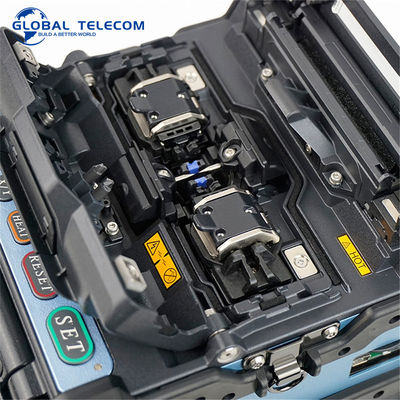

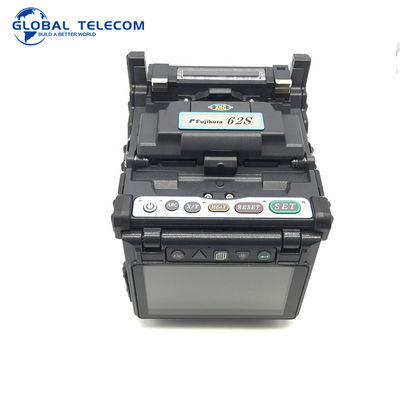

0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+

0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+

0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+
0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+ 0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+ 0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+ 0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+

Large Image :  0.03dB 5000 Splices Core Alignment Fusion Splicer FSM-62S FSM-60S FSM-62C+ FSM-62S+ Get Best Price

Product Details:

Place of Origin: Japan
Brand Name: Fujikura
Certification: CE/Rosh/ISO9001
Model Number: FSM-62S/FSM-62S+/FSM-62C/FSM-62C+

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: stander packing
Delivery Time: usually 7 working days after payment or depends on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Products Name: Fusion Splicer Brand: Fujikura
Model: FSM-62S/FSM-62S+/FSM-62C/FSM-62C+ Splicer Mode: Core Alignment
Electrodes Life: 5,000 Splices Fiber Type: SM,MM,DS,NZDS
Splicing Loss: 0.00-0.03dB Warranty: 2 Years
High Light:

5fujikura 62s splicing machine

,

0.03dB fujikura splicing machine 62s

,

0.03dB fsm 60s fusion splicer

fujikura FSM-62S FSM-60S FSM-62C+ FSM-62S+ core alignment fusion splicer machine

The Fujikura FSM-62S fusion splicer sets the standard for core alignment fusion splicing by incorporating a user-friendly interface with enhanced features to provide the most rugged and reliable fusion splicer in the market today. The new rugged construction adds improved reliability by resisting shock, dust, and rain, and can withstand a 30” drop test.



Features:

  • Core-to-Core alignment splicer
  • Fast splicing time 6sec./tube heating time 15sec.
  • Multi-functional carrying case with an integrated workstation.
  • Reliability and robustness
  • Automated and programmable wind protector
  • Fully ruggedized for shock, dust, and moisture
  • Li-Ion battery with 200 splices/shrinks per charge
  • 5 mm cleave length for splice on a connector or small package needs
  • Sheath clamp or fiber holder operation
  • Onboard training and support videos
  • Internet software upgrades
  • Multi-function transit case with integrated workstation

Specifications:

Model FSM-62S Fusion Splicer
Applicable Fibers
  • Single-model (G.652 and G.657),
  • Multimodel (G.651),
  • DS (G.653),
  • NZDS (G.655)
Cladding Diameter 80 μm to 150 μm
Coating Diameter 100 μm to 1,000 μm
Fiber Cleave Length 5 to 16 mm
Typical Average Splice Loss
  • 0.02 dB with SM,
  • 0.01 dB with MM,
  • 0.04 dB with DS,
  • 0.04 dB with NZDS,

measured by the cut-back method relevant to ITU-T standards

Splicing Time
  • ULTRA FAST model — 6 seconds;
  • SM FAST model — 7 seconds;
  • SM AUTO model— 10 seconds with SM fiber
Arc Calibration Method Automatic, real-time and by using results of the previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes 100 preset and user programmable modes
Splice Loss Estimate Based upon dual camera core axis alignment data
Storage of Splice Result Last 10,000 results stored in the internal memory
Fiber Display

X or Y, or both X and Y simultaneously.

Front or rear monitor display options with automated image orientation

Magnification 320X for single X or Y view, or 200X for X and Y view
Viewing Method Dual cameras with 4.7 inch TFT color LCD monitor
Operating Condition 0 to 5,000 m above sea level, 0 to 95%RH and -10 to 50°C respectively
Mechanical Proof Test 1.96 to 2.25N
Tube Heater Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time Typical 23 seconds with the FP-03 sleeve, 17 seconds with FP3 (40), 5-16 seconds with Japan Fusion Splicer micro sleeves,15 seconds with slim 60 mm and 40 mm sleeves
Protection Sleeve Length 60 mm, 40 mm, micro
Splice/Heat Cycles with Battery Typical 200 cycles with power save functions activated
Electrode Life 5,000 Arc Discharges
Power Supply Auto voltage selection from 100 to 240 V AC or 10 to 15 V DC with ADC-18, 14.8 V DC with BTR-09 battery
Terminals USB 1.1 (USB-B type) for PC communication. Mini-DIN (6-pin) for HJS-02/03
Wind Protection Maximum wind velocity of 15 m/s (34 mph)
Dimensions 146 W x 159 D x 150 H (mm) / 5.75 W x 6.25 D x 5.9 H (inches)
Weight

2.5 kg (5.5 lbs) with AC adapter ADC-18; 2.7 kg (5.95 lbs) with BTR-09 battery
