GYXTS Outdoor Fiber Optic Cable Armored Uni tube Anti Rodent 2-24 Core

Large Image : GYXTS Outdoor Fiber Optic Cable Armored Uni tube Anti Rodent 2-24 Core Get Best Price

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	3KM
Price:	Negotiable
Packaging Details:	Stander Wooden drum
Delivery Time:	usually 15 working days after payment or depends on quantity
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000KM Per month

Contact Now

Detailed Product Description

Product Name:	Uni-tube Anti-rodent Optical Cable	Model:	GYXTS
Fiber Core:	2-24 Core	Use:	Outdoor
Fiber Brand:	YOFC/FiberHome	Jacket Color:	Black
Jacket Material:	PE	Application:	Duct/Aerial/Direct Buried
High Light:	GYXTS Outdoor Fiber Optic Cable 24 Core , GYXTS Fiber Optic Cable Uni tube , Unitube GYXTS armored fiber optic cable

Outdoor GYXTS fiber optic cable Unitube Anti rodent Outdoor Armored optical fiber cable 2-24 core GYXTS

Basic Information

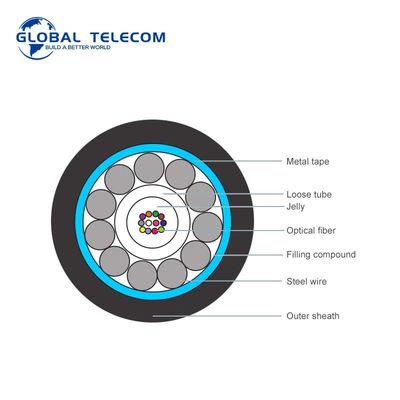

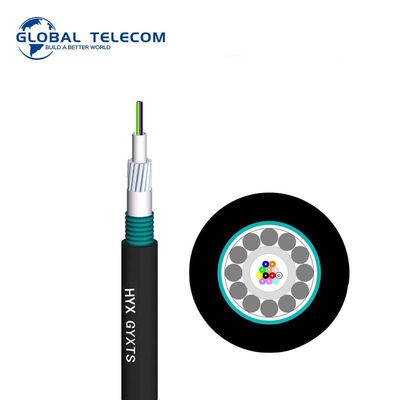

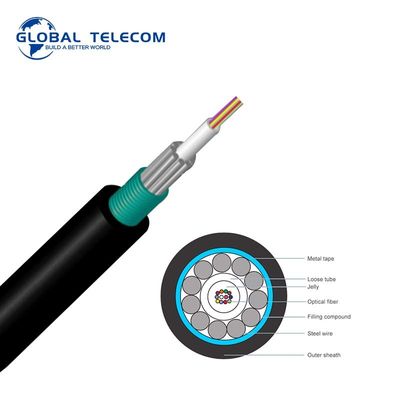

The Single-mode/multimode fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The loose tube is armored with steel wires and corrugated steel tape. Then a PE outer sheath is extruded.

Features:

Accurate process control ensuring good mechanical and temperature performances
The material of loose tubes with good hydrolysis resistance and relatively high strength
Tube filling compound providing key protection for fibres
Excellent crush resistance and flexibility
Wrapped steel wires providing good anti-rodent performance
Small size and light weight, easy for installation
Applicable to duct and aerial installations

Applications:

Duct
Aerial
Direct buried

Technical Parameters:

Fibre count	Tube size(mm)	Nominal thickness of sheath(mm)	Cable diameter(mm)	Cable weight (kg/km)	Tensile strength Long/short term(N)	Crush Long/short term (N/100mm)
2-12	2.5	2.0	8.8	108	600/1500	1000/3000
14-18	2.8	2.0	9.2	116	1000/3000	1000/3000
20-24	3.2	2.0	9.6	126	1000/3000	1000/3000
26-30	3.5	2.0	9.8	137	1000/3000	1000/3000
32-36	3.8	2.0	10.1	142	1000/3000	1000/3000

Standards:

Comply with Standard YD/T901-2001 as well as IEC60794-1.

Optical Parameters:

		50/125µm	62.5/125µm	G.652	G.655
Attenuation(+20°C)	@850nm	≤3.0dB/km	≤3.3dB/km
	@1300nm	≤1.0dB/km	≤ 1.0dB/km
	@1310nm			≤0.36dB/km	≤0.4dB/km
	@1550nm			≤0.22dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm	≥ 500MHz.km	≥ 200MHz.km
	@1300nm	≥ 1000MHz.km	≥ 600MHz.km
Numerical Aperture		0.200 ±0.015NA	0.275 ±0.015NA
Cable Cut-off Wavelength λcc				≤ 1260nm	≤ 1450nm
