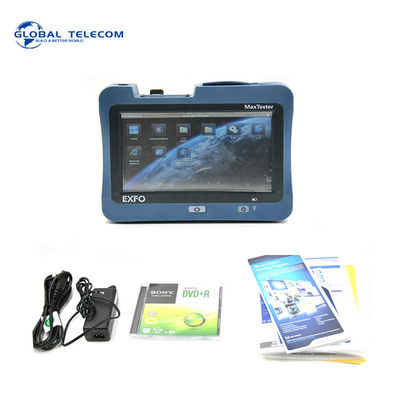

handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port

handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port

handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port
handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port

Large Image :  handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port Get Best Price

Product Details:

Place of Origin: China
Brand Name: EXFO
Certification: CE/ROSH/IOS9001
Model Number: EXFO-720C

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: Max-720C Dynamic Range: 30/28dB
Port: Two USB2.0 Port Dead Zones: EDZ 1 M, ADZ 4 M
Distance Range: 0.1 To 160 Km Linearity: ±0.05dB
Storage: 2 GB Internal Memory (20 000 OTDR Traces, Typical) Display Screen: 5 Inch, 240*320 Touching Scr
Power Input: 10MW Max Capacity: 50mAh
High Light:

Handheld Exfo Mini Otdr

,

1680nm Exfo Mini Otdr

Fiber optic otdr exfo 1310nm 1550nm 1680nm FTTH handle mini otdr fibra ópticahandheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port 0

Features:
Handy, lightweight, powerful, tablet-inspired design
7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry
12-hour autonomy
Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 36/35dB
Rugged design built for outside plant
handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port 1

Application:
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing

handheld Exfo Mini Otdr 1310nm 1550nm 1680nm with Two USB2.0 port 2

Display Two USB 2.0 ports; RJ-45 LAN 10/100 Mbit/s
Storage 2 GB internal memory (20 000 OTDR traces, typical)
Batteries Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
Power supply Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Wavelength 1310/1550nm
Dynamic range 30/28dB
Event dead zone 1m
Attenuation dead zone 4m
Distance range 0.1 to 160 km
Pulse width 5 ns to 20 us
Linearity ±0.05dB
Loss threshold 0.01dB
Loss resolution 0.001dB
Sampling resolution 0.04 to 5m
Sampling points Up to 256 000
