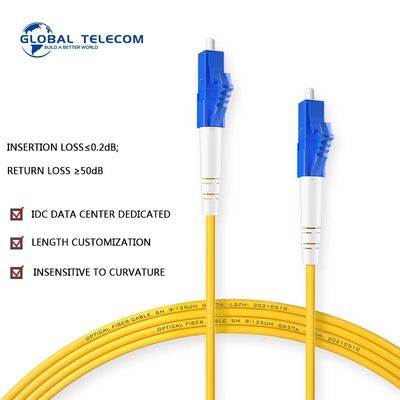

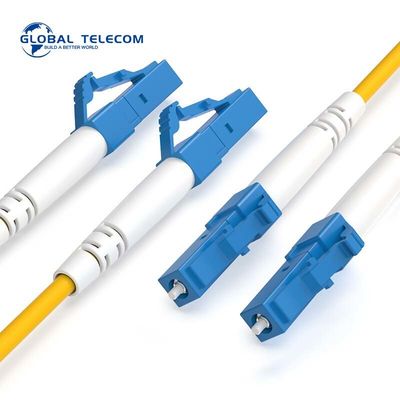

LSZH Jacket Lc To Lc Fiber Patch Cord Single Mode 2.0mm Simplex
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Products Name: | LC UPC Patch Cord | Fiber: | G652D G657A |
|---|---|---|---|
| Jacket: | LSZH | Insertion Loss: | ＜0.2dB |
| Return Loss: | ≥60dB | Length: | Customized )1/2/3/5...) |
| OEM: | Avaiable | Diameter: | 2.0mm/3.0mm |
| Warranty: | 1 Year | Sample: | Avaiable |
| High Light: | 2.0mm Lc To Lc Fiber Patch Cord,LSZH Lc To Lc Fiber Patch Cable,Simplex Lc To Lc Fiber Patch Cord |
||
LC upc to lc upc fiber optic patch cord single mode 2.0mm simplex G652D fiber LSZH jacket LC patch cord
Description:
LC-LC fiber optic patch cordis used for linking the equipment and components in the fiber optic network. They are with various kinds of fiber optic connector types. The fiber optic patch cord types are classified by the fiber optic connector types. There are PC, UPC, APC type fiber patch cord. They are different because of the polish of fiber connector.
Feature
Low insertion loss, high return loss
Good in repeatability and exchangeability
High temperature stability
Excellent end face geometry ISO9001:2008, ROHS
Various fiber cable length, jacket color, connector type and label, etc.
All products undergo 100% strict quality inspection before shipment.
|
Patch Cord/Pigtail Spec
|
|||
|
Type
|
Single mode(UPC)
|
Single mode(APC)
|
Multi-mode (PC)
|
|
Insertion loss
|
≤0.2 dB
|
≤0.2 dB
|
≤0.2 dB
|
|
Return Loss
|
≥50 dB
|
≥60 dB
|
≥35 dB
|
|
Repeatability
|
≤0.1dB
|
||
|
Durability
|
≥1000matings
|
||
|
Operating Temperature
|
-40 ºC to +80 ºC
|
||
|
Tensile Strength(N)
|
≥90N (φ3), ≥70N (φ2)
|
||
