Indoor Cabling Optical Fiber Drop Cable GJXCH G625D Single Mode
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Telecommunication FTTH | Cable Type: | Outdoor 1 Core To 4 Core |
|---|---|---|---|
| Fiber Type: | G652D/G657A1/G657A2 | Steel Wire: | 1 Center Steel +2 Steel Wire |

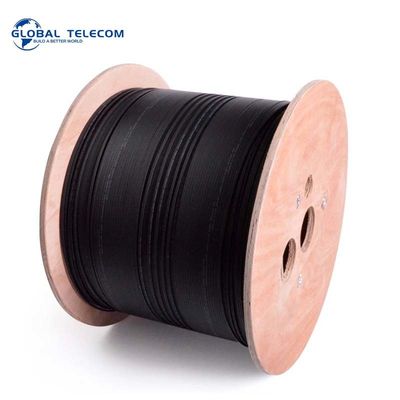

| Length: | 1KM Per Roll, 2KM Per Roll Or Customized | OEN: | Accept |
| Color: | Black Or White | Operating Temperature: | -40 To + 75℃ |
| High Light: | GJXCH Optical Fiber Drop Cable,G625D Optical Fiber Drop Cable,G625D Single Mode indoor drop cable |
||
Outdoor 1 core ftth drop cable G625D Single mode fiber GJXCH FTTH fiber optical fiber drop cable
FTTH Drop Cable Singldemode FRP/KFRP/Steel Strength Member Fiber Optic Cable

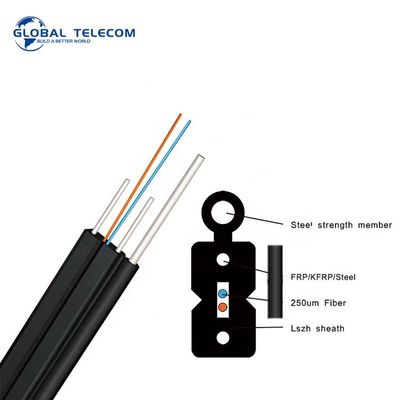

Description:
- The optical fiber unit is positioned in the center.
- Two parallel Fiber Reinforced Plastics (FRP) are placed at the twp sides.
- Then the cable is completed with a black or white color LSZH sheath.
Features:
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath
- Simple structure, light weight and high practicability
Application:
- Used in indoor cabling, especially used for FTTH
- Used as access building cable
Fiber Characteristic:
| Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
| GJXFH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 8 | 30/60 | 300/1000 | 15/30 |
| GJXFH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 8.5 | 30/60 | 300/1000 | 15/30 |
| GJXFH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 | 15/30 |
| GJXH-1 | 1 | (2.0±0.2)×(3.0±0.2) | 9 | 30/60 | 300/1000 | 15/30 |
| GJXH-2 | 2 | (2.0±0.2)×(3.0±0.2) | 9.5 | 30/60 | 300/1000 | 15/30 |
| GJXH-4 | 4 | (2.0±0.2)×(3.0±0.2) | 10 | 30/60 | 300/1000 |
15/30 |
