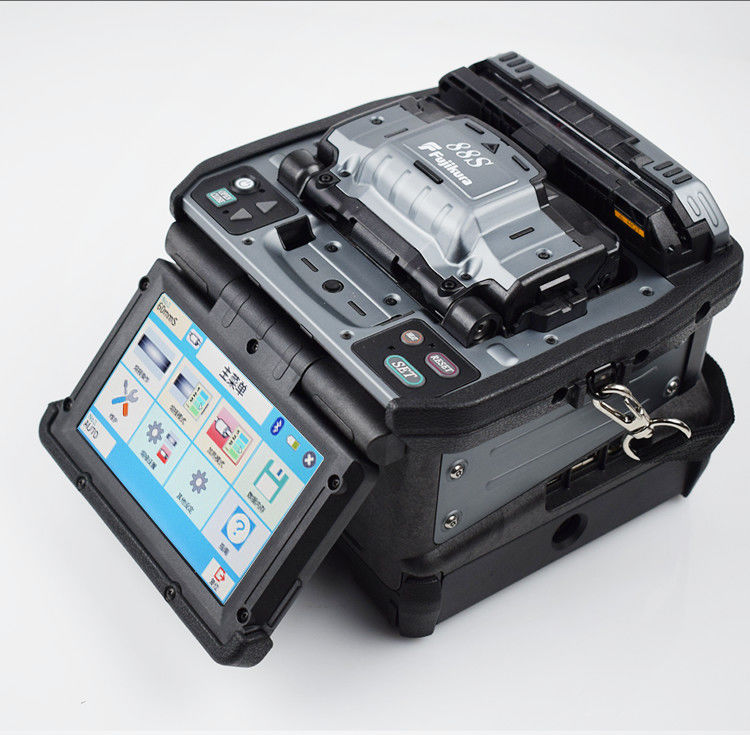

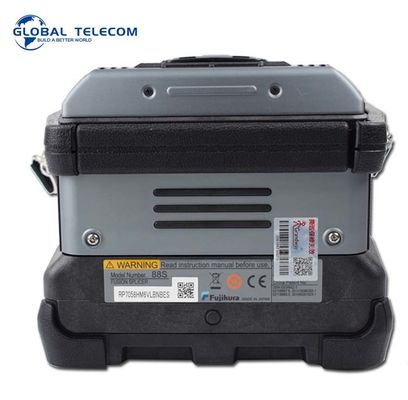

FSM 88S Fusion Splicer Machine Multi Mode Optical Cable Joint Machine

entire splicing process from splicing to heating without touching the 90S and only moving the fiber.
The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber
retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted
by the operator.

01.

Core Alignment Technology The 90S fusion splicer has high precision lenses which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the lenses allow the splicer to discriminate between fiber types.

02.

Advanced Image Processing Technology The 90S possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The 90S finds the true core position and achieves the consistent lower splice loss.

03.

Fiber Discrimination Function The 90S fusion splicer automatically identifies the optimum arc discharge parameters in accordance with the fiber type.

01.

Easy Fiber Protection Sleeve Positioning The shape of the sheath clamp is optimized for the 60mm length protection sleeve. The length from splice point to the edge of the sheath clamp is 30mm. Therefore, it is easy to center the protection sleeve over the splice by using your finger as the reference splice point.
