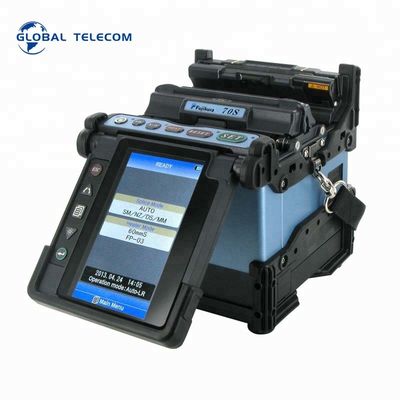

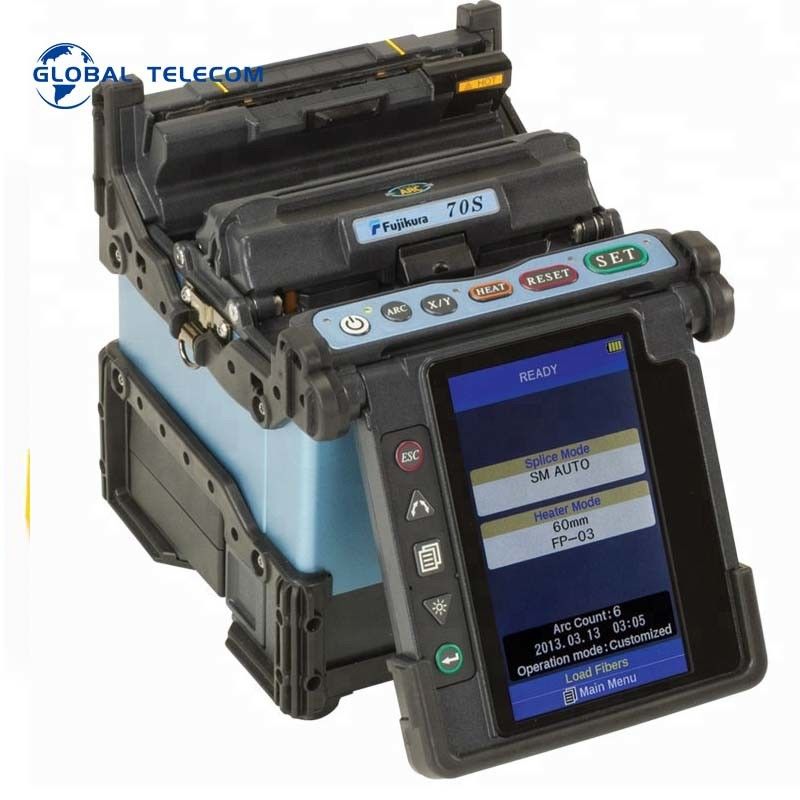

Arc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTH

Large Image : Arc Fsm 70s Fujikura Fusion Splicer CT-30 Cleaver For FTTX FTTH Get Best Price

Product Details:

Place of Origin:	Japan
Brand Name:	Fujikura
Certification:	CE/Rosh/ISO9001
Model Number:	FSM-70S

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiable
Packaging Details:	fujikura stander packing
Delivery Time:	5-8 working days after payment depends on quantity
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500 sets per month

Contact Now

Detailed Product Description

Name:	FIber Optic Fusion Splicer Machine	Brand:	Fujikura
Model:	FSM-70S	Origin Of Place:	Japan
Use:	FTTX/FTTH	Splice Mode:	Single Fiber
Splice Loss:	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB	Fiber Type:	SM MM DS NZDS
Warranty:	3 Years	Language:	English
High Light:	Arc Fsm 70s Fujikura Fusion Splicer , FTTX Fsm 70s Fujikura Fusion Splicer , FTTH fusion splicer 70s

Japanese brand fujikura FSM-70S with CT-30 cleaver arc fusion splicer for fiber optic splicing machine

Fujikura fusion splicer with CT-06 or CT-30 fiber cleaver, 4.1" color screen, standard accessories, Multiple foreign languages menu is optional.

Features:

1.Automated and programmable wind protector
2.14-second automated tube heater
3.Fully ruggedized for shock, dust and moisture
4.Li-Ion battery with 200 splices/shrinks per charge
5. 5mm cleave length for splice on connector or small package needs
6.Sheath clamp or fiber holder operation
7.On-board training and support videos
8.Internet software upgrades

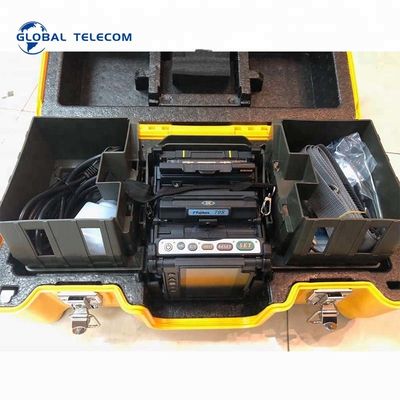

9.Multi-function transit case with integrated workstation

Parameter

Applicable fibers	Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
Cladding dia.	80-150um
Cleave length	5mm to 16mm with sheath clamp
Splice mode / heating mode	Total 100 splice modes / 30 heating modes
Splice loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.
Attenuation splice function	Intentional high splice loss of 0.1dB to 15dB(0.1dB step)can be made for an in-line fixed attenuator.
Splice time / tube heating time	Typical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve
Splice result storage	Last 2000 splices
Viewing methods / magnification	2 axis CMOS camera with 4.73” color LCD. X / Y (320X magnification), or both X and Y simultaneously (200X magnification)
Tension test	1.96 to 2.25N
Applicable protection sleeve	60mm, 40mm and Fujikura micro sleeves
No. of splice / heating per battery full charge	Typical 200 cycles with BTR-09
Electrode life	3000 splices
Size / weight	146W x 159D x 150H (mm) / 2.7kg (including battery)
Operating condition	Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Resistance features*1	Shock : 76cm (30inch) all surface drop Dust : Exposure to dust (0.1 to 500um dia Alumina Silicate), IP5X Rain :H=10mm/hr for 10min, IPX2
Other features	PC software upgrade / data management
Terminals	USB 2.0 (Mini-B type) connector for PC communication. 6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply
