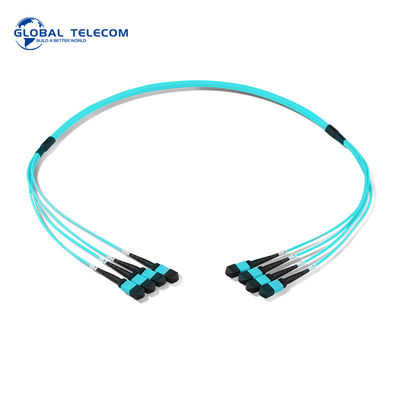

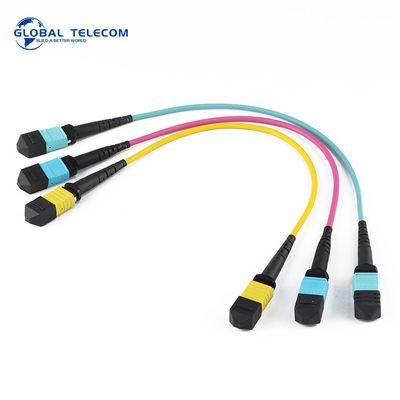

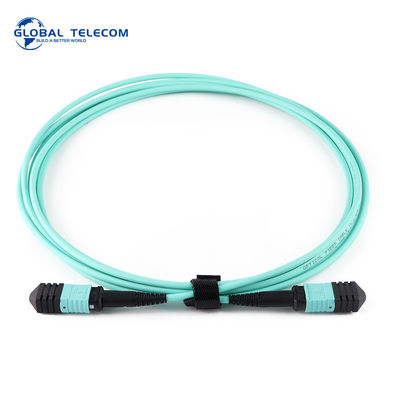

0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode

0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode

0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode
0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode

Large Image :  0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom
Certification: CE/ROSH/IOS9001
Model Number: mpo mtp MTP patch cable

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000sets
Detailed Product Description
Type: Fiber Optic Patch Cord, Coaxial Number Of Conductors: ≥ 10
Fiber Type: Multimode 50/125 OM3 Certifaction: ISO9001, ROHS
Insertion Loss: 0.2dB Length: Customized
High Light:

0.2dB Mtp Mpo Patch Cord

,

24 Cores Mtp Mpo Patch Cord

,

12 Cores Multimode Patch Cord

Singlemode multimode 8 12 24 cores

MTP MPO patch cord



0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 0

①MPO/MTP Trunk Cable
②MPO/MTP Harnesses Cables
③MPO/MTP Fan out 0.9mm Patch Cords
④IP-Series MPO/MTP Assembly
⑤High Density Patch Cords
⑥MPO/MTP Loopback
⑦MT Patch Cords
⑧MPO/MTP Cassettes

⑨MPO/MTP Fiber Optic Patch Panel





0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 1

DYS MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost. MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.



0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 2





APPLICATION

Data communication network Optical System Access network Storage area networking fiber channel High density architectures



FEATURES

100% pre-terminated and tested in factory to ensure transfer performance Rapid configuration and networking, reduce installation time Supports 40G and 100G network applications Jacket material: LSZH, OFNR, OFNP available Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

0.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 30.2dB Mtp Mpo Patch Cord 8 12 24 cores Singlemode multimode 4



Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60


MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20


LC/SC/FC/ST
SM

≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30

Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.



Mechanical Properties
Item
Criteria
Conformance
△IL After 50 Matings
MPO/MTP
≤0.3dB
GR-1435
△IL After 500 Matings
LC/SC/FC/ST
≤0.2dB
IEC 61300-2-2
Min Bend Radius (Dynamic)
20*OD (Cable Diameter)
Min Bend Radius (Static )
15*OD (Cable Diameter)
Environment Conditions
Item
Criteria
Conformance
Operation Temperature
-40~60°C
IEC 61753-1
Storage Temperature
-45~85°C
