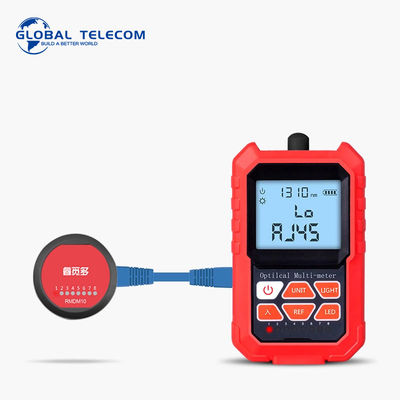

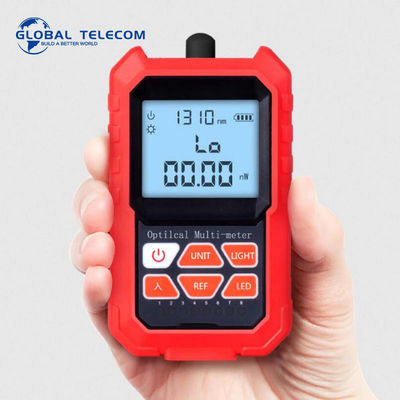

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST
AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST

Large Image :  AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom
Certification: CE/ROSH/IOS9001
Model Number: GT-5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Connector Type: FC/SC/ST Wavelength Range: 800-1700
Uncertainty: ± 5 % Standard Wavelength: 850,1300,1310,1490,1550,1625nm
Display Resolution: Linear Display:0.1%logarithmic Display:0.01dBm Operating Temperature: -10~+60℃
Storage Temperature: -25~+70℃ Auto-off Time: 10min
Working Time: ≥48hours Size: 118mm*68mm*30mm
High Light:

AIO Portable Optical Power Meter

,

FC Laser Visual Fault Locator

,

5km Laser Visual Fault Locator

Portable All-In-One Fiber Optic Power Meter With

5km Laser Source Visual Fault Locator

Description:
2 IN 1 Fiber Optic Power meter with 5km Laser source Visual Fault locator.This kind calibration type optical power meter is for handheld installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient portable test instrument. With clever appearance, can choose to switch back light display, automatic shutdown function, super wide optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design.

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 0

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 1

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 2

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 3



Features:
Practical and Compact Designit – it is portable and easy to bring with large screen and LED backlight;
It is the Combination of the optical power meter and Visual Fault locaotr.
Light power one machine function: can measure 850/980/1300/1310/1490/1550/1625nm
and other 7 wavelength of the optical absolute power,test range: -70dBm~+10dBm;
10mW visual fault locator can measure the distance is about 10 kilometers.

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 4
Applications:
Fiber CATV Test Engineering,
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 5

AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 6
AIO Portable Optical Power Meter , 5km Laser Visual Fault Locator FC SC ST 7
Wavelength(nm) 800~1700nm
Measurement Range (dBm) -70~+6
Uncertainty ±3%
Calibrated Wavelength(nm) 850,980,1300,1310,1490,1550,1625
Resolution(dB) 0.01
