Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath

Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom Or OEM
Certification: CE/Rosh/ISO9001
Model Number: GYTA53

Payment & Shipping Terms:

Minimum Order Quantity: 2KM
Price: Negotiable
Packaging Details: 1KM or 2KM per roll customized
Delivery Time: 10 working days after payment
Payment Terms: T/T, Western Union, Western Union, MoneyGram, L/C
Supply Ability: 10000 KM Per month
Detailed Product Description
Features: Double Jacket Double Armored Model Number: GYTA53
Type: Fiber Optic Cable No. Of Cable: 4-144 Core Or As Your Request
Fiber Model: G.652D Color: Black
Sheath: PE Application: Underground
Packing: 2-4km/wooden Drum OEM And ODM: Support
High Light:

G652D Outdoor Fiber Cable PE Sheath

,

Underground Single Mode Outdoor Fiber Cable

,

PE outdoor single mode fiber optic cable

Double Jacket Armored optic fiber cable GYTA53 8 core 12 core 24 core 48 core G652D Single mode optical fiber cable
product description:

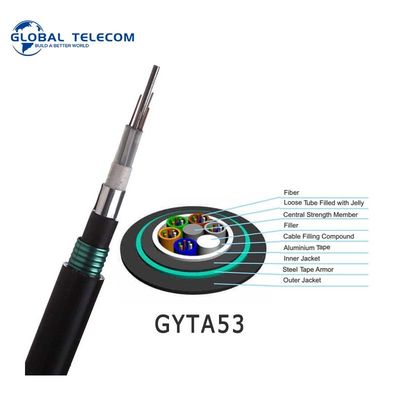

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath..

Products Feature :

1, Good mechanical and temperature perfomance;
2, High strength loose tube that is hydrolysis resistant
3, Special tube filling compound ensure a critical protection of fiber
4, Specially designed compact structure is good at preventing loose tubes from shrinking
5, PE sheath protects cable from ultraviolet radiation
6, The following measures are taken to ensure the cable watertight:
---Steel wire used as the central strength member
---Loose tube filling compound
---100% cable core filling
---APL moisture barrier
Technical data
No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.5
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.8
1.8
2.1
Thickness(±0.03)mm
0.32
0.32
0.35
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.8
1.8
2.1
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE



Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.25
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
13.2
13.2
13.8
Cable Weight(±10)kg/km
152
155
165
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

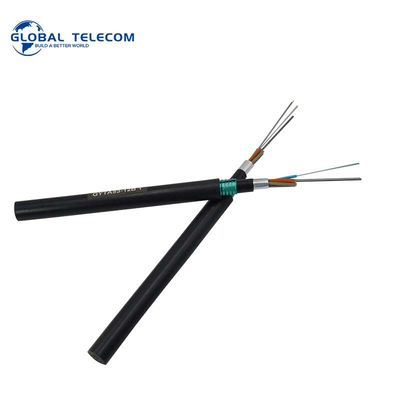

Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath 0

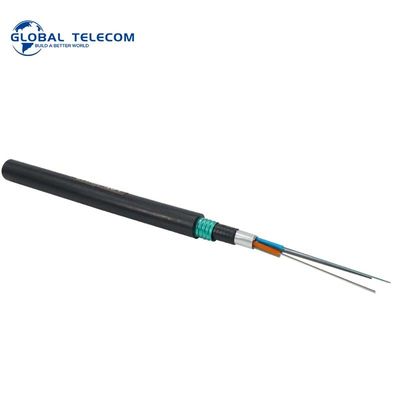

Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath 1

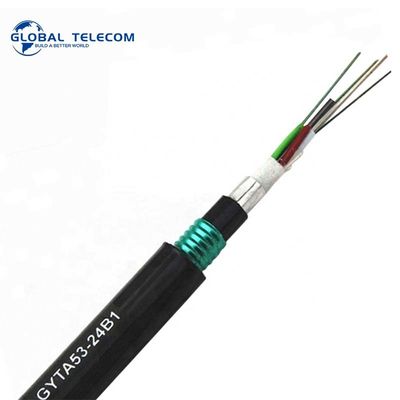

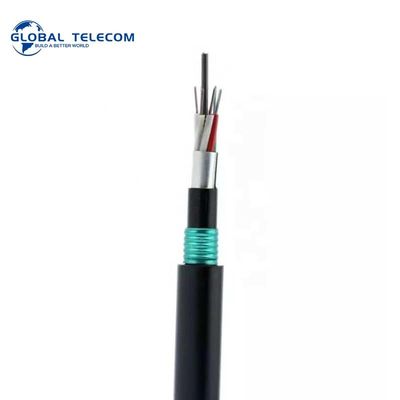

Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath 2Underground G652D Single Mode Outdoor Fiber Cable Double Jacket Armored PE Sheath 3
