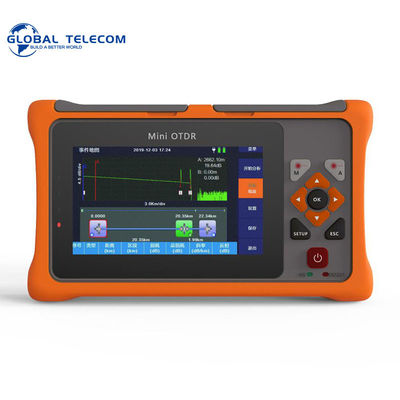

Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing

Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing

Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing
Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing

Large Image :  Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom
Certification: CE/ROSH/IOS9001
Model Number: GT4000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: GT4000 Application: FTTH
Power Input: 10W Max Capacity: 4200mAh
Wavelength: 1310nm/1550nm Dynamic Range: 24/22dB
VFL Output Power: ≥10mW Connector Type: SC/FC/ST
Operating Temperature: -20~ +60℃ Language: Multi-language
High Light:

Single Mode Mini Ftth Otdr

,

Intelligent Mini Ftth Otdr

GT4000 Mini otdr 1310/1550/1625

single mode RJ45 cable tester handhold optic otdr

Optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by AVES Communication Technology for testing optical fiber communication system. button/ touch dual operation; Internal integration of eight major functional modules, multi-functional integration to help customers effectively solve the field test and maintenance; can penetrate optical splitter, effective PON network testing; Intelligent power-saving management, 20 hours long standby, efficient protection of test dimension Continuous.
Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing 0Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing 1

Applications:

It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.

Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing 2

Festures:

1. 9-in-1 functions.
2. The 4.3-inch full-view capacitive touch-screen supports multi-touch.
3. Cover plate type tempered glass panel, don't worry about screen scratch.
4. Support horizontal version, vertical version, perfect fusion of the two habits of user operations.
5. Support charging treasure charging, do not worry about the battery is not enough.
6. In line with the international standards of test data with perfect simulation software, so that your report is more simple.
7. Sink type light port design, so that the instrument light port can get better protection.
8. Support pen-driver, SD card and Micro USB export data protection.
9. Any interface supports screen capture.

1. 3-inch capacitive touch screen with full viewing , TFT 800x480 resolution
2. Lithium battery: 5200mAh/ 3.7v, standby time > for 10 hours
3. Size: 175x105x45mm, weight: 560g (including battery)
4. Working temperature: -10~+55°C, storage temperature: -20~+80°C

Single Mode Mini Ftth Otdr intelligent For RJ45 Cable Testing 3

Distance range Up 100KM
Sampling resolution 0.2m minimum
Sampling point 64,000 points
Linearity =0.05dB/dB
Loss threshold 0.01dB
Loss resolution 0.001dB
Range resolution 0.01m
Distance accuracy +(0.5+testdistanceX3X 10+samplingesolution)edudingrefractiveinderor)
data storage More than 80,000 test curves
Red light source 10mW, CW/2Hz
Data interface 2 USB ports (Type AX 1, Micro usbX 1), SD card
monitor 4.3 inch TFT-LCD (standard capacitive touch screen)
battery 3.7V/5200mAh
temperature Working temperature: -10°C~+55°C, storage temperature: -20°C~ +80°C
humidity =95% (no condensation)
size 175X 105X 45mm .
weight 0.56kg (including battery)
Optical power meter Type A: -10dBm-~-70dBm, Type B: +26dBm~- 50dBm
Network cable test terminal Support network cable sequence test
