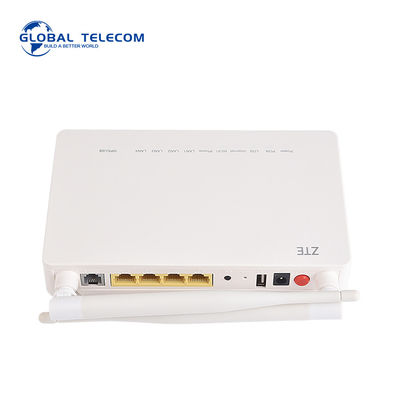

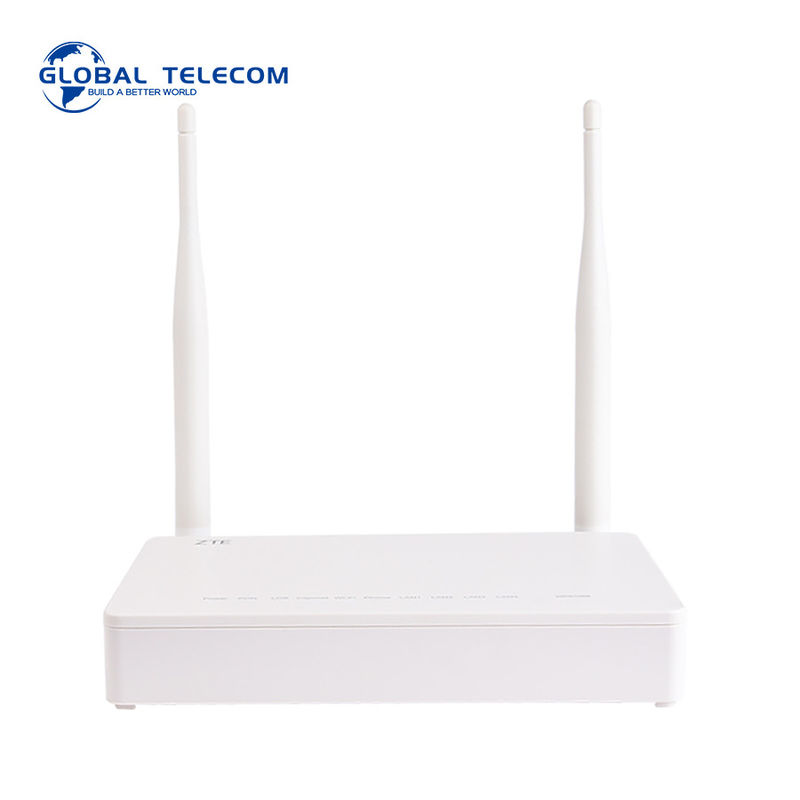

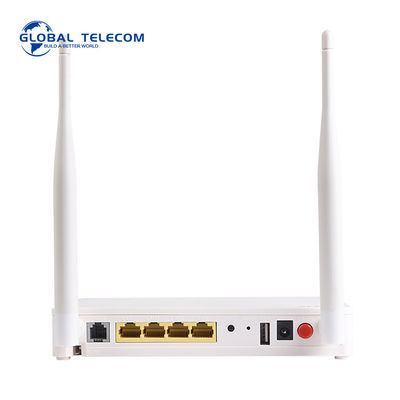

SC UPC ONU Modem Fiber Optic , ZTE F660 V8.0 1GE 3FE Wifi
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number: | F660.V8.0 | Type: | ONU, FTTx Solutions |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Pon Port Type: | SC/UPC |
| Max Optical Attenuation: | 27, 29 DB | Max Split Of PON Port: | 32, 64 |
| Relative Humidity: | Max 90% Without Condensation | Downlink: | 1*100/1000M Auto-adaptive |
| Wireless: | Compliant With IEEE802.11b/g | Storage Temperature: | -30~60℃ |
| High Light: | UPC ONU Modem Fiber Optic ZTE F660,SC ONU Modem Fiber Optic ZTE F660 V8.0,ONU SC UPC F660 V8.0 1GE 3FE Wifi |
||
ZTE F660 V8.0 1GE+3FE+Wifi gpon ont
fiber optic network modem wifi gpon onu
Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
Product Description:
* Fiber access:Connecting internet throungh GPON access method
* Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
* VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
* Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
* Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.
* Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
* Providing multi-level authentication based on device, user, service, and encryption of data channels
* For different service requirements of the business,it can complete the local equipment and network matching QoS requirements
* Holding network management based on multiple management methods
* Fiber access:Connecting internet throungh GPON access method
* Ethernet fuction: It Provids 4 Ethernet ports and Ethernet devices can be directly connected to the ZXHN F660 Ethernet port to achieve Internet and IPTV services.
* VoIP function: It Provids 1 VoIP(Phone) ports supporting softswitch SIP, IMS SIP or H.248 voice control protocol and telephone can be connected via this interface.
* Internal WLAM fuction: Users can connect to the ZXHNF627 via WLAN, enabling wireless Internet access.
* Data sharing, fast backup, data recovery and other functions: It provides USB2.0 port.Pluging a USB memory device,it can achieve all these fuctions.
* Under the premise of providing the above functions ,achieving security, QoS and network management are also took into the consideration.
* Providing multi-level authentication based on device, user, service, and encryption of data channels
* For different service requirements of the business,it can complete the local equipment and network matching QoS requirements
* Holding network management based on multiple management methods
Executive Standard:
* GPON interface: SC/UPC or SC/APC PON interface,GPON standard
* Ethernet interface: 1*10Mbps/100Mbps/1000Mbps adaptive port+3*10Mbps/100Mbps adaptive port,RJ-45 type,IEEE802.3 and IEEE802.3u standard
* Phone interface: RJ-11 type
* WLAN interface: IEE802.11b,IEEE802.11g,IEEE802.11n standard,built-in antenna
* USB interface:standardized USB2.0
Applications:
* Catering for different scenarios it provides different interfaces such as FE,GE,VoIP, E1, WiFi,USB and other interfaces to meet the requirements of FTTH,FTTO and FTTB application modes, not only for home user, but also for commercial users.It supports full service operation with high QoS and security, such as HSI, VoIP, IPTV.
* Easy for deployment Mounting mode and fiber coiling make installation very easy.
* Easy for trouble shooting Support ONT signal tracing and performance monitoring, and quickly locate fault on ONT.
* Particular power saving Supports status monitoring when ONT is free, and enter low-power
