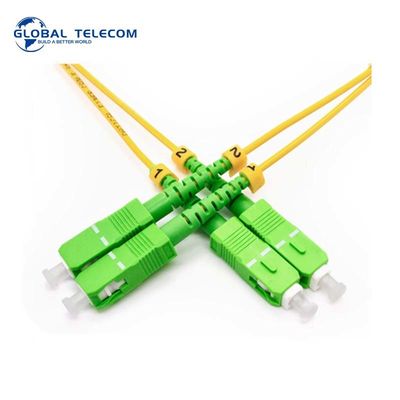

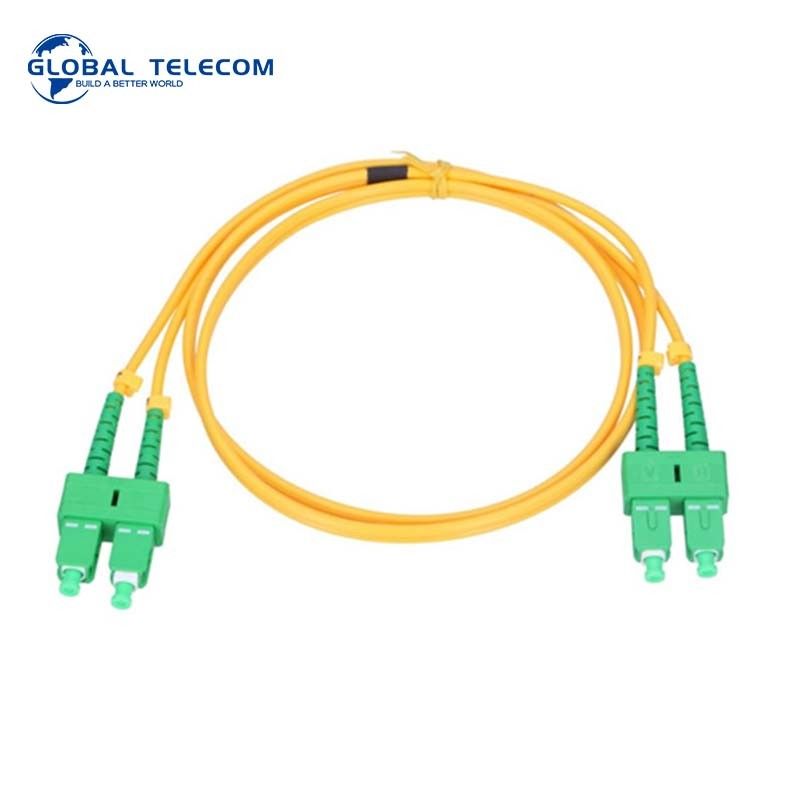

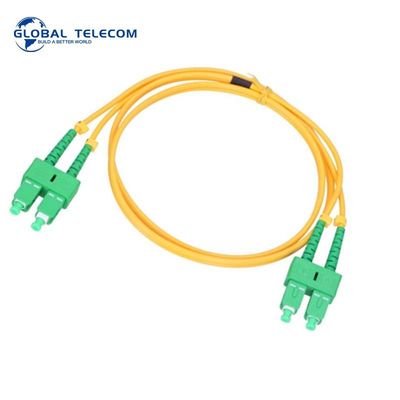

Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet

Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet

Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet
Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet

Large Image :  Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet Get Best Price

Product Details:

Place of Origin: China
Brand Name: Huayixin or OEM
Certification: CE/Rosh/ISO9001
Model Number: SC APC duplex

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Plastic bag packaging
Delivery Time: 5-8 working days after payment depends on quantity
Supply Ability: 500000 pcs per month
Detailed Product Description
Name: SC APC Duplex Patch Cord Connector Type: SC APC
Color: Green Fiber Cable: G652D G657A
Jacket Material: LSZH Length: Customized 1/2/3/5/10....
Stander Loss: <0.3dB OEM: Available
Sample: Available Warranty: 1 Year
High Light:

125nm Duplex Sc Apc Fiber Optic Cable

,

Os2 Sc Apc Fiber Optic Cable

,

9 125 fiber optic cable

sc apc to sc apc os2 duplex single mode 9/125nm 3.0mm 3M 5M ftth SC APC fiber patch cord

  • High-quality and Insensitive SC to SC Fiber Grade: G.657.A2 Patch Cable Single mode 9/125 OS2 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
  • This Fiber OS2 9/125 FC/FC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
  • This SM fiber has an yellow color jacket with a 3.0mm diameter. OS2 cables have a 0.36 dB/km attenuation at 1550 nm - 0.22 dB/km at 1310 nm
  • This FC to FC Single mode Duplex OS2 fiber patch cords operate at -40ºC to +75ºC and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
  • Reduced bend loss sensitivity versus standard telecom fiber patch cables: Optimal for Flexible Installations in indoor cable set-ups they could now be used in walls, ceilings, conduits (FTTH) and other bumpy surfaces without worrying about fiber bends.

Features:

  • Wavelengths: 1310 and 1550
  • Yellow Jacket
  • Bend Radius: Insensitive G.657.A2/B2 (7.5mm)
  • Cable Jacket: 3.0mm PVC
  • Operating Temperature: -4 to 158F (-20 to +70 C)
  • Standard Zip Cord
  • Core: OS2 Bend Insensitive Fiber - 9/125 Microns
  • Fiber-Grade: G.657.A2
  • Polarity: A(Tx) to B(Rx)
  • Polish: UPC to UPC
  • OS2 9/125 fiber conforms to ITU-657 A2/B2
  • Multiple Sizes Available: (1m,3m,5m,10m,20m)

Specification:


Parameter

Unit
FC,SC,LC ST,MU,MTRJ,
SM MM SM MM
UPC APC UPC UPC UPC
Insertion Loss dB ≤0.2 ≤0.2
Return Loss dB ≥55 ≥65 ≥35 ≥55 ≥35
Repeatability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Durability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Exchangeability dB IL≤0.2 RL≥5 IL≤0.1 IL≤0.1 IL≤0.1
Compressive Strength N F>300
Operation life Span Times n>1000
Operation Temperature -40~75
Storage Temperature -45~85
Cable Diameter cm 0.9,2.0,3.0 or specified




Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet 0Os2 Duplex Sc Apc Fiber Optic Cable 9/125nm For Fast Ethernet 1
