Home ProductsOTDR Testing Machine

jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld

jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld

jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld
jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld

Large Image :  jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld Get Best Price

Product Details:

Place of Origin: China
Brand Name: Viavi
Certification: CE/ROSH/IOS9001
Model Number: MTS-6000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: MTS-6000 Warranty: 1 Year
Tri Wavelength: 1310/1550/1625 Dynamic Range: 41/40dB OTDR
Dynamic Range 4: 45/45/44 DB Dynamic Range 3: 41/40/40 DB
Dynamic Range 5: 50/50/50 DB Dynamic Range 2: 45/43dB
Max Capacity: 3000mAh Power Input: 50W
High Light:

Jdsu Viavi OTDR Testing Machine

,

50W MTS 6000 OTDR

,

Handheld MTS 6000 OTDR

jdsu viavi handheld FTTH MTS-6000 otdr tester fiber optic otdr MTS-6000

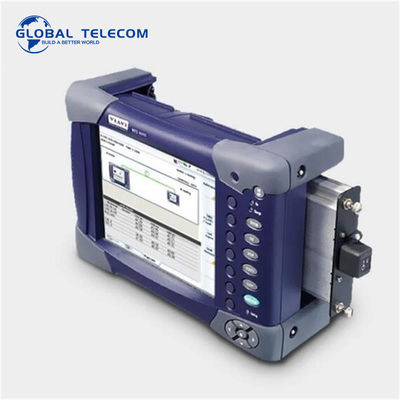

The Viavi Solutions™ T-BERD/MTS-6000A is a highly integrated test platform designed for all phases of network lifecycle from the installation to the maintenance of fiber networks.

It provides field service technicians with the highest levels of performance and upgradeability on the market today. Modular in design, the T-BERD/MTS-6000A offers an extensive portfolio of test functionality with over forty different modules supporting a wide range of applications. The versatility of the T-BERD/MTS-6000A allows technicians to standardize using one type of test equipment and then introduce new testing capabilities in the field without incurring additional training and device costs.
With field applications for servicing Metro Core telecom networks, wireless/cable switch centers and backhaul networks, government telecommunications and network equipment manufacturer field installation and support groups, the Multi-Services Application and fiber optics modules are the latest innovation for the award-winning, industry-leading T-BERD/ MTS-family of test solutions.


A powerful user interface helps the technician quickly set up and evaluate tests as well as troubleshoot problems, reducing operational expense.

jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 0jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 1jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 2jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 3jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 4

Main Features
* Compact, lightweight, and highly integrated platform
* Multi-layer network solution from physical to services layer
* Built-in VFL, power meter, LTS, ORL, and video inspection scope options
* Over 40 application modules available for physical test on single- and multimode fiber
* Multi-service capability allows Ethernet and SONET/SDH tests at the same physical test port Modular form factor enables field upgrade of test capabilities by adding or replacing PIMs and optics on multi-services application module.
* Performs two independent Ethernet tests in parallel with dual-port chassis


Application
* Performs multimode and single-mode OTDR and optical loss test (bidirectional)
* Performs FTTx/PON and CWDM OTDR testing
* Performs 10G/10GE/40G fiber dispersion testing (PMD/CD/AP)
* Tests 10 GigE LAN- and WAN-PHY at 850,1310, and 1550 nm
* Tests dual- and single-port 10 Mb/s to 1 GigE
* Tests SONET/SDH at OC-3/STM-1 through OC-192/STM-64 line rates
* Tests TCP/UDP at 10 Mb/s to 10 Gb/s with stateful emulation
* Tests IP Video at 10 Mb/s to 10 GigE line rates

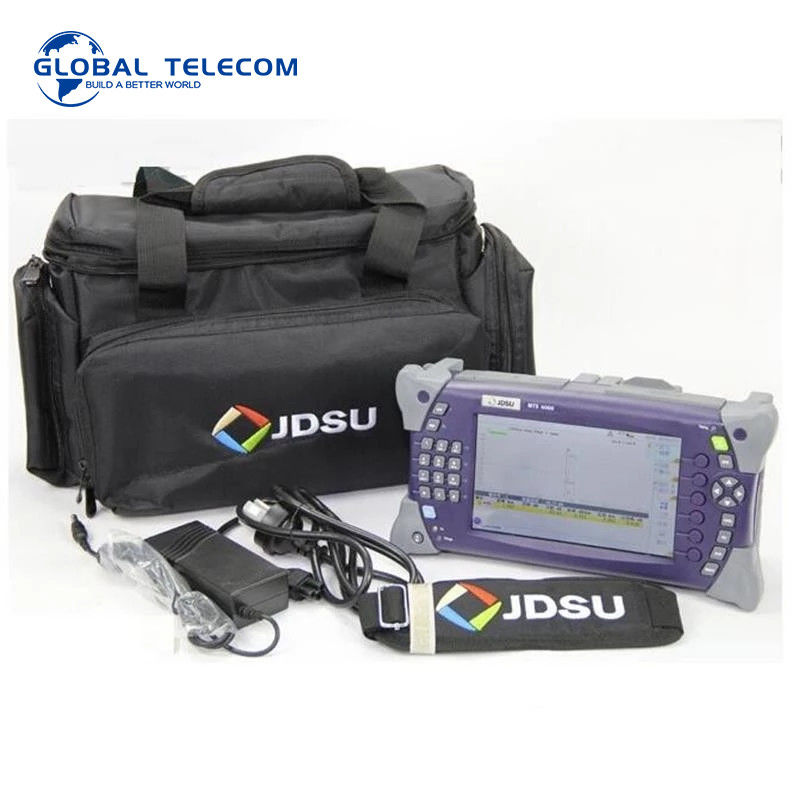

Standard Package
1. Main body
2. Built-in battery
3. OTDR module
4. AC adapter
5. standard connector port: FC/PC ;
6. Calibration Certificate
we also offer FC-LC, FC-SC and FC-ST adapters. plz contact us if you need them.

jdsu viavi OTDR Testing Machine , 50W MTS 6000 OTDR handheld 5

Fiber alignment
Core/cladding alignment / Manual alignment
Splicing time
5S(AI-9)
Heating time
Automatic heating(Preheating)
Focus mode
Six motors Auto focus
Applicable Fibers
SM(G.652&G.657),MM(G.651)DS(G.657),NZDS(G.655)
Splice Loss
0.025dB(SM),0.01dB(MM), 0.04dB(DS/NZDS)
Control technology
Real-time control and calibration of fusion ARC
Return loss
Better than 60DB
Fiber diameter
Cladding Diameter(80-150μm),Coating Diameter(100-1000μm)
Fiber Cleave Length
Coating less than 250μm(8-16mm),Coating less than 250-1000μm(16mm)
Shrinkable tube
60mm,40mm
Size
130mm*122*148
Power supply
Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current
