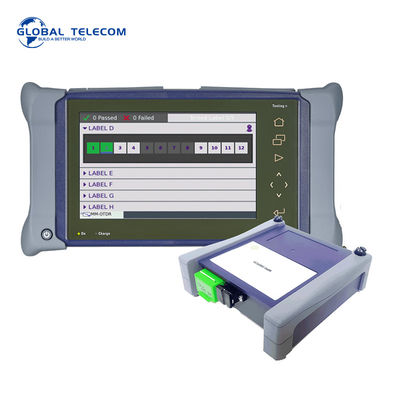

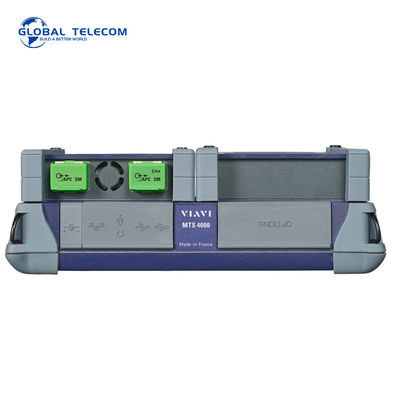

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing

Large Image :  JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing Get Best Price

Product Details:

Place of Origin: China
Brand Name: Viavi
Certification: CE/ROSH/IOS9001
Model Number: MTS-4000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: MTS-4000 Type: Testers & Tools, Testers &Tools
Brand Name: JDSU VIAVI Commodity: JDSU VIAVI MTS-4000 OTDR Touch Screen
Wavelength: 1310/1550dB Dynamic Range: 35/33dB
Event Dear Zone: 2m Long Dynamic Range: 50dB
Attenuation Dead Zone: 8m Application: Fiber Loss Testing
High Light:

50dB OTDR VIAVI MTS 4000

,

JDSU OTDR VIAVI MTS-4000 50dB

,

JDSU OTDR VIAVI MTS-4000 Long Dynamic Range

JDSU VIAVI MTS-4000 OTDR Touch Screen
Description:
All-in-one Access/FTTx/Triple-Play Services Test Set
The MTS-4000 is a small, compact and handheld test platform designed for all phases of the network lifecycle, from the installation to the maintenance of Access/FTTx networks and triple-play services. Modular in design, the MTS-4000 offers field service technicians the highest performance and superior levels of scalability and upgradeability.
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing 0

Highlights
· Large 7-inch indoor/outdoor color display
· Cost-effective, compact and handheld platform
· Multi-layer network solution from physical to services layer
· Highly scalable with up to 2 field-replaceable modules
· Connection checker with VFL, power meter and video inspection scope options
· Flexible connectivity for fast data transfer: 2xUSB 2.0, up to 1 Gb/s Ethernet

JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing 1



Features:
· Lightweight platform: only 1.4kg/3 lbs
· Intuitive graphical user interface with touchscreen option
· Extended battery life using smart Lithium ion cell
· Scripting capability for automation, simplification and automatic data reporting

· Easy Internet access via installed web browser
· Remote control access allowing remote assistance from any expert user
· Integration of basic applications such as HTML and PDF reader

· Comprehensive suite of PC software tools for post-processing of test results with FiberTrace (OFS-100) andFiberCable (OFS-200)
JDSU OTDR VIAVI MTS-4000 50dB Long Dynamic Range for fiber loss testing 2
Applications:
· Fiber test applications include OTDR, PON meter, video inspection scope, laser source/power meter, and VFL
· Copper test applicationsinclude volt/ohm meter, time domain reflectometer (TDR), resistive fault locator, and wideband tones/spectal analysis to 30 MHz
· Triple-play service testing/IPTV and VoIP measurements from DSL access interfaces or standard Ethernet port
· VDSL and ADSL testingusing Infineon Technologies chipset and licensed option for Dr. DSL® diagnostic solutions from Aware, Inc.
Model LM
Last Mile
MA
Metro Access
QUAD
Single/Multi
Wavelength (nm) 1310/1550
1625/1650
(1625 filtered)
1310/1550
1625/1650
(1625 filtered)
850/1300
1310/1550
Dynamic range (dB) 32/30
30/28
37/35
35/34
27/25
37/35
EDZ* (m) 1 0.9 0.8/0.8/0.9
ADZ** (m) 4 4 4
Range*** (km) 20 60 20/60
