IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves

IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves

IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves
IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves

Large Image :  IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom
Certification: CE/ROSH/IOS9001
Model Number: HYX-45mm 60mm

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000sets
Detailed Product Description
Type: Fiber Fusion Splicer, Testers &Tools Use: FTTH, Fiber Optic Fusion Splicer, FTTX
Certification: RoHS, Ce Operating Temperature: -45 °C To + 100 °C
Material: Fusion Tube,Stainless Steel Rod,Heat Shrinkable Tube Tubing Length: 45,60mm
High Light:

60mm Fiber Heat Shrink Sleeves

,

45mm Fiber Heat Shrink Sleeves

,

IOS9001 fiber splice sleeves

Fiber optic Splicing kit fiber shrinkable sleeve splice for 1 core fiber optic cable

A specially designed crosslinked Clear Heat Shrinkable tubing, with Clear fusion tubing liner, providing strength member and protection to fiber optical splices.

Features:
Single holed(preshrunk)ends eliminates improper fiber threading
Smooth,deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
Extended liner length prevents contact between the fiber and their backbone
Clear sleeve design permits easy centering of splice before heating
Sealing structure makes the splice free from effect of temperature and
humidity from environment
Type
Single fiber, Ribbon fiber
Material
Heat shrink tube, fusion tube, 304 steel rod
Length
45, 60mm
Tubing ID
1.5, 1.3, 0.5mm
Steel rod diameter
1.5, 1.2, 1.0mm
Minimum fully recovery temperature
120 °C
Operating temperature
-45 °C to + 100 °C
Standard Color
Clear



Technical Data



Properties
Test Method
Typical Data
Tensile Strength
ASTM D2671
≥18 MPa
Ultimate Elongation
ASTM D2671
700%
Dielectric Strength
IEC 243
20KV/mm
Dielectric Constant
IEC 243
2.5max
Longitudinal Change
ASTM D2671
0±5%
Density
ISO R1183D
0.94 g/cm3

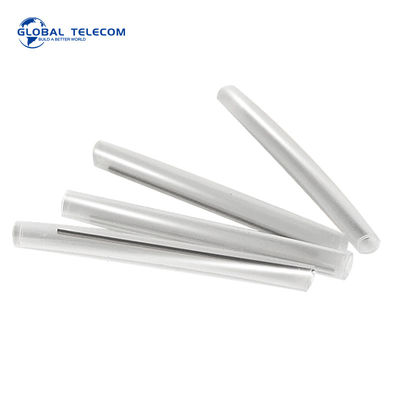

IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves 0

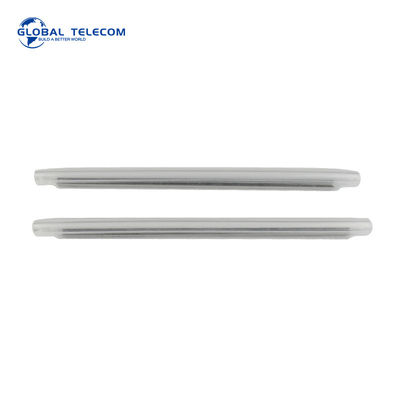

IOS9001 Fiber Optic Splicing Tools 45 60mm Fiber Heat Shrink Sleeves 1
