Home ProductsONU Modem Fiber Optic

HS8545M xpon Gpon Epon

HS8545M xpon Gpon Epon

HS8545M xpon Gpon Epon
HS8545M xpon Gpon Epon HS8545M xpon Gpon Epon HS8545M xpon Gpon Epon

Large Image :  HS8545M xpon Gpon Epon Get Best Price

Product Details:

Place of Origin: China
Brand Name: Huawei
Certification: CE/ROSH/IOS9001
Model Number: HG8546M

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: Hg8546m Ports: 1GE+3FE+1POT +WiFi+USB Wire
Application: Ftth Dimension: 20cm*16cm*3cm
Operating Temperature: 0°C To +40°C Indicators: POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Weight: 500g Power Supply: 12V/1.0A
High Light:

HS8545M Xpon Gpon Epon

,

ftth Xpon Gpon Epon

Fiber Optic Equipment huawei onu gpon 4 port ge wifi
HG8546M 8546M gpon fiber modem same as HS8545M

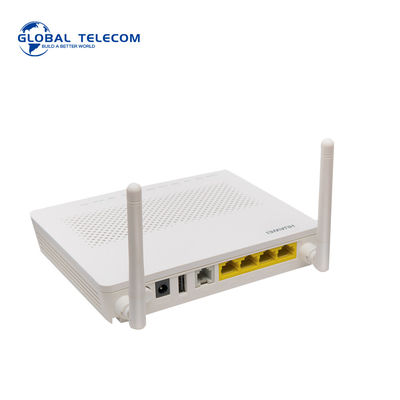

The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The HG8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.


Huawei GPON ONU HG8546M Product Specifications
*Dimensions(W x D x H):250 mm x 190 mm x 40 mm
*Port:1POTS+1GE+3FE+1USB+1Wi-Fi
*Average power consumption:8 W
*Operating environment:Temperature: 0℃~+40℃;
*Humidity: 5%–95%, non-condensing*Power supply:Adapter input: 100–240 V AC, 50–60Hz;
*Adapter output: 11–14 V DC, 1 A*Weight:About 500g (including the power adapter)

Application and Advantage:
1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance
HS8545M xpon Gpon Epon 0
HS8545M xpon Gpon Epon 1
HS8545M xpon Gpon Epon 2
HS8545M xpon Gpon Epon 3
HS8545M xpon Gpon Epon 4
HS8545M xpon Gpon Epon 5
Item
Parameter
PON Interface
1*GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps
User Ethernet Interface
4*FE/GE auto adaptive Ethernet interfaces, RJ45 connectors,1*WIFI
Power Interface
12V DC Power supply An external 12V 1A AC/DC power supplyadapter
PON Optical
Parameter
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1~4dBm Rx Sensitivity: -28dBm
Saturation Optical Power: -3dBm Connector Type: SC
Optical Fiber: 9/125um single-mode fiber
Data Transmission Parameter
PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 4*100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
Network Management
Status monitor, Configuration management, Alarm management, Log management
