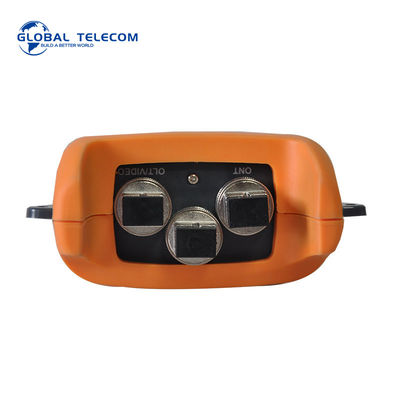

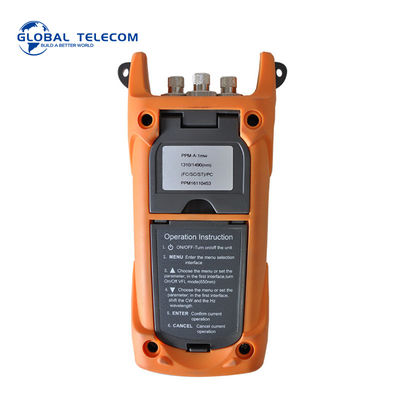

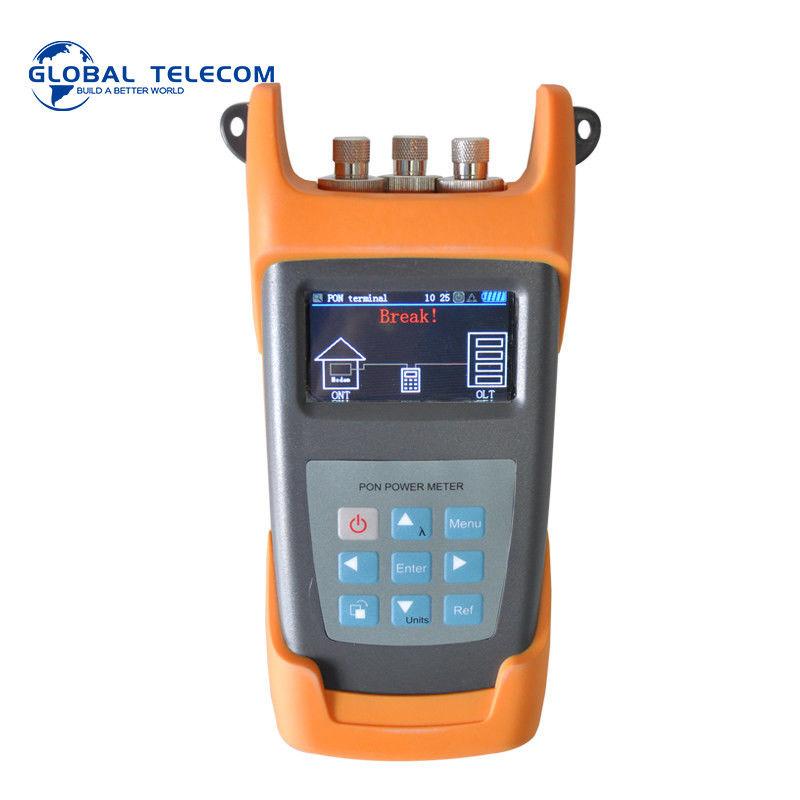

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector Get Best Price

Product Details:

Place of Origin: China
Brand Name: Joinwit
Certification: CE/ROSH/IOS9001
Model Number: JW3213

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Product Name: JW3213 PON Fiber Optic Cable Power Meter Type: Fiber Optic Power Meter, Testers &Tools
Use: FTTH Warranty Time: 1 Year
No. Of Fiber: 1. Connector: FC/PC
High Light:

FTTH JW3213 Mini Optical Power Meter

,

JW3213 FC PC PON Power Meter

,

JW3213 PON Power Meter FC PC

JW3213 PON Optical Power Meter
Features:
* It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
* Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm).
* Used in Burst mode measurement of 1310nm upstream.
* Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
* USB communication port enables data transfer to a PC.1000measurement items can be saved in 3213 PON power meter or computer for data review.
* With optical power meter modual, include 850,1300,1310,1490,1550,1625sixs( 3213AP,3213A without 850nm wavelength);With visual fault locator modual(3213and3213AV)
* Optical power meter and VFL with one port.(only 3213A)
* Optional Chinese/English display.
* Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
* 10 minutes Auto-off function can be activated or deactivated
* Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
* Different models corresponding to different function, according to own use to choose .
Test link method
FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 0

Line normal detection function 1

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 1

Line disconnection detection function 2

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 2

Terminal signal anomaly detection function 3

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 3

Terminal is not powered on detection function 4

FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 4
Terminal fiber connector fall off detection function 5
FTTH Mini Optical Power Meter , JW3213 PON Power Meter FC/PC Connector 5

Specification
PON module: JW3213 JW3213A JW3213AV JW3213AP
1310 upstream measurement
Pass Zone(nm) 1260nm~1360nm
Measurement Range(dBm) -40dBm~+10dBm
Output power(max) 15dBm
Isolation@1490/1550(dB) >40dB
Burst mode measurement error <±0.5dB
1490 downstream measurement
Pass Zone(nm) 1470nm~1505nm
Measurement Range(dBm) -40dBm~+10dBm
Output power(max) 15dBm
Isolation@1310/1550(dB) >40dB
1550 downstream measurement
Pass Zone(nm) 1535nm~1570nm
Measurement Range(dBm) -40dBm~+10dBm
Output power(max) 25dBm
Isolation@(1310/1490nm) >40dB
Measurement Accuracy
Connatural uncertainty(dB) ±0.5dB
Linearity(dB) ±0.1dB
Passing through insertion Loss(dB) <1.5dB
General Information
Detector Type InGaAs
Optical Connector FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type SM 9/125um
Measurement Unit dB/dBm/xW
Resolution (dB) 0.01dB
Operation Voltage(V) DC 3.3V~5.5V
Power Supply 3pc1.5V battery
Continuously Operation time (h) PON:90h PON:90h
OPM:100h
VFL:50h
PON:90h
VFL:50h
PON:90h
OPM:100h
Operation Temperature(℃) -10℃~60℃
Storage temperature(℃) -25℃~70℃
Weight(kg) 423g 425g 424g 424g

Normal Optical Power Meter Module:
Normal Optical Power Meter JW3213② JW3213A JW3213AP
Measurement Accuracy
Connatural uncertainty(dB) None ±0.5dB
Linearity(dB) None ±0.1dB
Measurement Range(dBm) None -70dBm~+6dBm
General Information
Measurement Unit None dB/dBm
Resolution (dB) None 0.01dB
Calibration Wavelength(nm) None 1310/ 1490/1550/1625 1310/ 1490/1550/1625
Detector Type None InGaAs
Optical Connector None FC/SC/ST Interchangeable/2.5 universal adapter


VFL Module:

VFL JW3213③ JW3213A JW3213AV
Output power None >0.5mW
Wavelength None 650nm
Optical Connector None FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type None SM/MM
