Field Assembly Optical Fiber Fast Connector SC UPC Single Mode

Field Assembly Optical Fiber Fast Connector SC UPC Single Mode

Field Assembly Optical Fiber Fast Connector SC UPC Single Mode
Field Assembly Optical Fiber Fast Connector SC UPC Single Mode Field Assembly Optical Fiber Fast Connector SC UPC Single Mode Field Assembly Optical Fiber Fast Connector SC UPC Single Mode

Large Image :  Field Assembly Optical Fiber Fast Connector SC UPC Single Mode Get Best Price

Product Details:

Place of Origin: China
Brand Name: Global Telecom
Certification: CE/ROSH/IOS9001
Model Number: GT-B10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Type: Fast Connector, Fiber Adapter & Connectors Use: FTTH
Warranty Time: 1 Year Fiber Type: Single Mode
Connector Type: SC APC SC UPC Color: Blue Green
Function: FTTH Optical Network Connection Operation Time: About 15s(exclude Fiber Presetting)
Cable Scope: 2x3mm And 2x 1.6mm, 0.9mm Insertion Loss: ≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
High Light:

Field Assembly Optical Fiber Fast Connector

,

UPC Optical Fiber Fast Connector

,

SC field assembly optical connector

SC UPC Field Assembly Fiber Optic Fast Connector

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

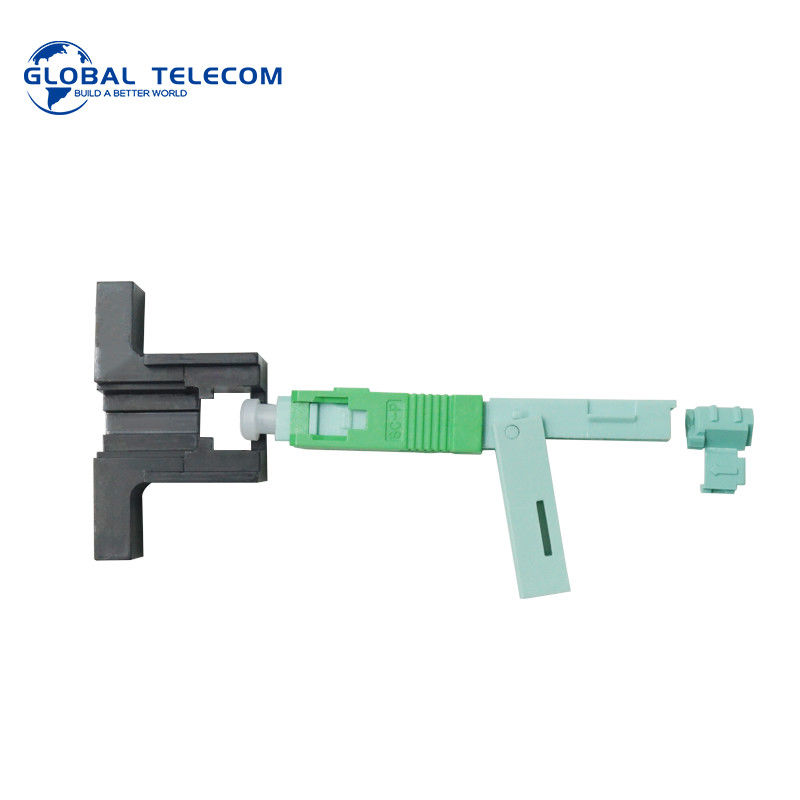

Field Assembly Optical Fiber Fast Connector SC UPC Single Mode 0

Festures:

•Low insertion loss ,high return loss

•Reliable optical performance

•Good connection stability

•Convenient for field installation
•Installs fast, operates easy

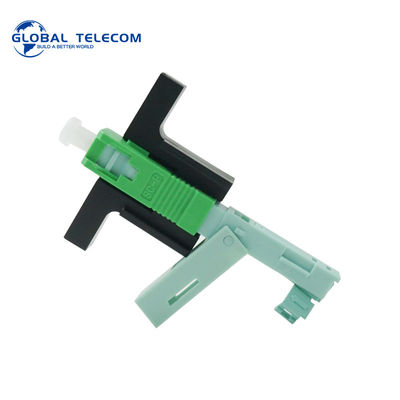

Field Assembly Optical Fiber Fast Connector SC UPC Single Mode 1

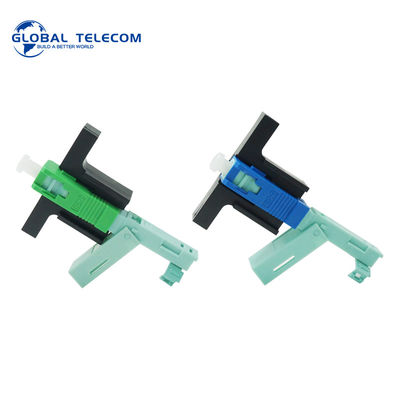

Field Assembly Optical Fiber Fast Connector SC UPC Single Mode 2


Application:
-Direct termination of fibre
-FTTx networks(FTTH. FTTD)
-Enterprise/Access networks
-LAN/WAN
-Permanent/Temporary replacement/repairs
-Pre-installation cable drum testing
Field Assembly Optical Fiber Fast Connector SC UPC Single Mode 3
Item
Information
Cable Scope
2x3mm and 2x 1.6mm, 0.9mm
Fiber Diameter
125μm (G652 & G657A1, G657A2)
Coating Diameter
250μm
Mode
SM
Operation Time
about 15s(exclude fiber presetting)
Insertion Loss
≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
Return Loss
≥50dB for UPC, ≥55dB for APC
Success Rate
>98%
Reusable Times
>10 times
Tighten Strength of Coating
>10 N
Tensile Strength
>5 N
Temperature
-40 ~ +85 C
On-line Tensile Strength Test (20 N)
IL ≤ 0.5dB
Mechanical Durability(500 times)
IL ≤ 0.5dB
Drop Test (4m concrete floor, once each direction, three times total)
IL ≤ 0.5dB
