EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance
EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance

Large Image :  EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance Get Best Price

Product Details:

Place of Origin: China
Brand Name: Huawei
Certification: CE/ROSH/IOS9001
Model Number: HG8546M

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Model Number: Hg8546m Pors: 1GE+3FE+1POT +WiFi+USB Wire
Application: Ftth Dimension: 20cm*16cm*3cm

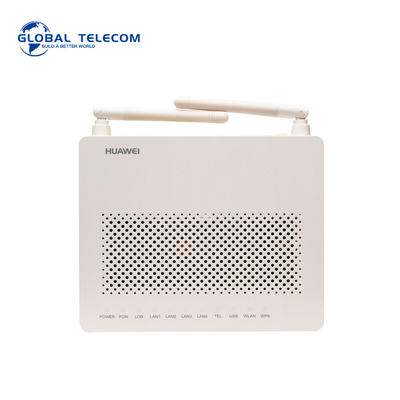

Operating Temperature: 0°C To +40°C Indicators: POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS
Weight: 500g Power Supply: 12V/1.0A
High Light:

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge

,

High Performance HG8546M Huawei Onu Gpon 4 Port Ge

,

huawei echolife hg8546m

Fiber Optic Equipment huawei onu gpon 4 port ge wifi

HG8546M 8546M gpon fiber modem same as HS8545M

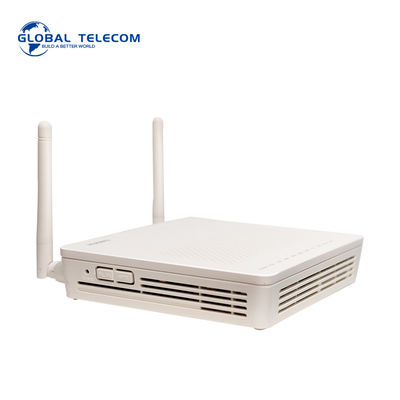

The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The HG8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the HG8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 0

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 1

Huawei GPON ONU HG8546M Product Specifications

*Dimensions(W x D x H):250 mm x 190 mm x 40 mm

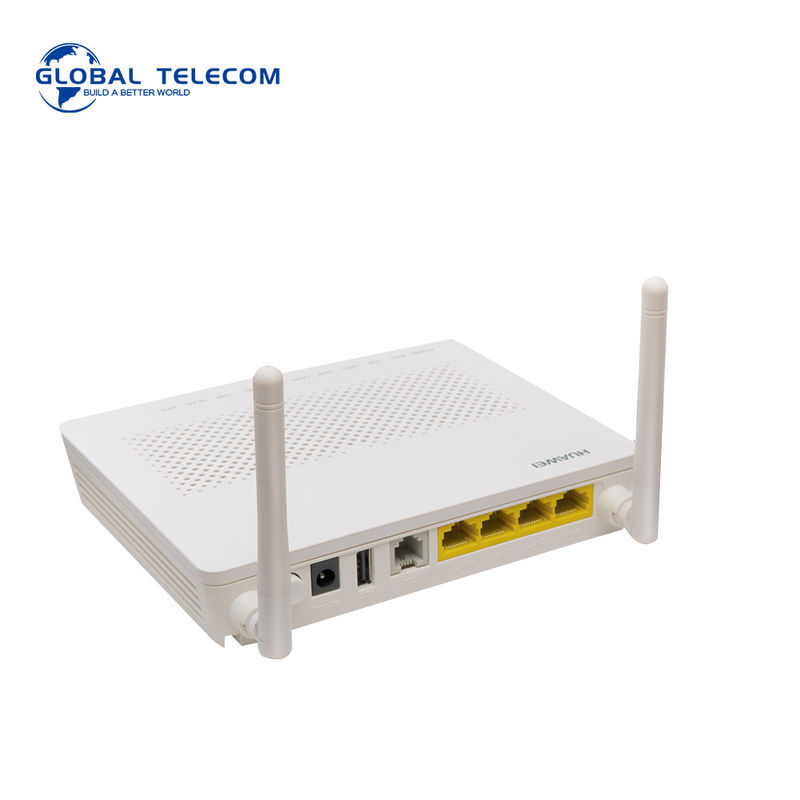

*Port:1POTS+1GE+3FE+1USB+1Wi-Fi

*Average power consumption:8 W

*Operating environment:Temperature: 0℃~+40℃;

*Humidity: 5%–95%, non-condensing*Power supply:Adapter input: 100–240 V AC, 50–60Hz;

*Adapter output: 11–14 V DC, 1 A*Weight:About 500g (including the power adapter)

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 2

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 3

Application and Advantage:
1.Full compatible with ITU-T G.984.
2.Support port-based rate limitation and bandwidth control
3.Integrated OMCI remote configuration and maintenance function.
4.Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
5.Support Dynamic Bandwidth Allocation (DBA)
6.Support ONT auto-discovery/Link detection/remote upgrade of software;
7.Support VLAN division and user separation to avoid broadcast storm;
8.Support power-off alarm function ,easy for link problem detection
9.Support broadcasting storm resistance function
10.Support port isolation between different ports
11.Support ACL and SNMP to configure data packet filter flexibly
12.Specialized design for system breakdown prevention to maintain stable system
13.Support software online upgrading
14.EMS network management based on SNMP ,convenient for maintenance

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 4

EchoLife HG8546M Huawei Onu Gpon 4 Port Ge Wifi High Performance 5

Model Configuration Dimension/pcs
LAN Telephone Wifi PPPOE Firmware
HG8546M 1GE+3FE 1pots yes yes English 250*185*35mm/0.44kgs
Remarks External Antenna



Item Parameter
PON Interface 1*GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps
User Ethernet Interface 4*FE/GE auto adaptive Ethernet interfaces, RJ45 connectors,1*WIFI
Power Interface 12V DC Power supply An external 12V 1A AC/DC power supplyadapter

PON Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm

Tx Optical Power: -1~4dBm Rx Sensitivity: -28dBm

Saturation Optical Power: -3dBm Connector Type: SC

Optical Fiber: 9/125um single-mode fiber

Data Transmission Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps

Ethernet: 4*100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms

Network Management Status monitor, Configuration management, Alarm management, Log management
