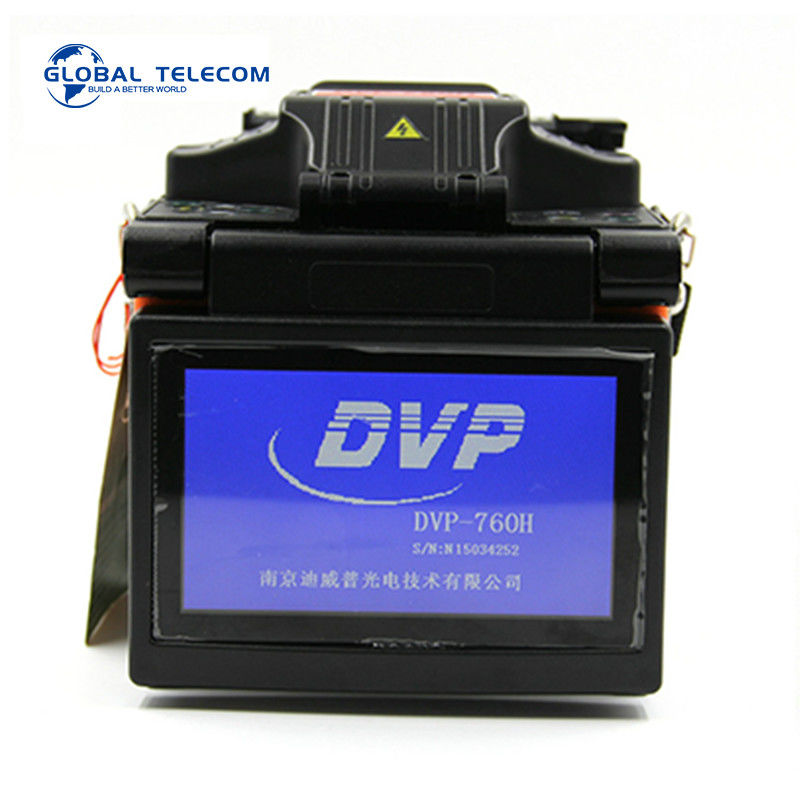

Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer

Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer

Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer
Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer

Large Image :  Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer Get Best Price

Product Details:

Place of Origin: China
Brand Name: DVP
Certification: CE/ROSH/IOS9001
Model Number: DVP-760

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Product Name: Splicer Machine DVP-760 Applicable Fibers: M MM DS NZ-DS EDF Drop Cable,connector And Bare Fiber
Language: Chinese,English,Russian,French,Portuguese,Spanish Tension Test: 2.0N(200gf)(Standard)
Tube-heat Time: 35 Seconds Return Loss: ≥60dB
Dimensions: 122mm(L)*122mm(W)*130mm(H) Storage Environment: -40~ +80℃ (temperature) , 0~95%RH (humidity)
Internal Battery: 12V/2A Power For External Heater, Light Or Hot Jacket Stripper Splice Memory: 10000 Splices
High Light:

Compact Optical Fiber Fusion Splicer 10000 Splices

,

Compact 10000 Splices DVP 760 Splicer

,

Compact DVP 760 Splicer 10000 Splices

FTTH fiber splicing machine fusion splicer splicer DVP-760 fiber optic fusion dvp-760 with nice price

Features :
1,Designed for Splicing Drop Cable, Connector and Bare fiber
2,Compact & Light weight
3,Fully Automatic Operation
4,5000m altitude ensures Splice Quality
5,SYSTEM TEST ensures the best working condition
6,A 4.5-inch Color LCD monitor
7,Pause function, convenient for scientific research
8,Store 8000 groups of splice results
9,USB&DC interface
10,High battery capacity, up to 200 times of continuous splice and heat
Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer 0
Compact Optical Fiber Fusion Splicer , 10000 Splices DVP 760 Splicer 1

Packing

1pcs/box

Weight

2.0kg with battery

Splice mode

single fiber

Size

D122*W122*H130(mm)

splicing time

9 seconds

MOQ

1Pcs

Coating diameter

100 to 1000m

Fiber cleaved length

8-22mm (standard)

Average splice loss

0.02dB(SM) 0.01dB(MM) 0.04dB(DS) 0.04dB(NZDS)

Environment condition

Environment conditions: -25~+50C (operation temperature), 0~95%RH (humidity),0~5000m(altitude)

Storage Supply

AC adaptor:85~260V input voltage

Internal battery:12V,6Ah,up to 120 times of continuous splice and heat

Dimensions/weight

142(D)×122(W)×138(H)mm/1.95kg
