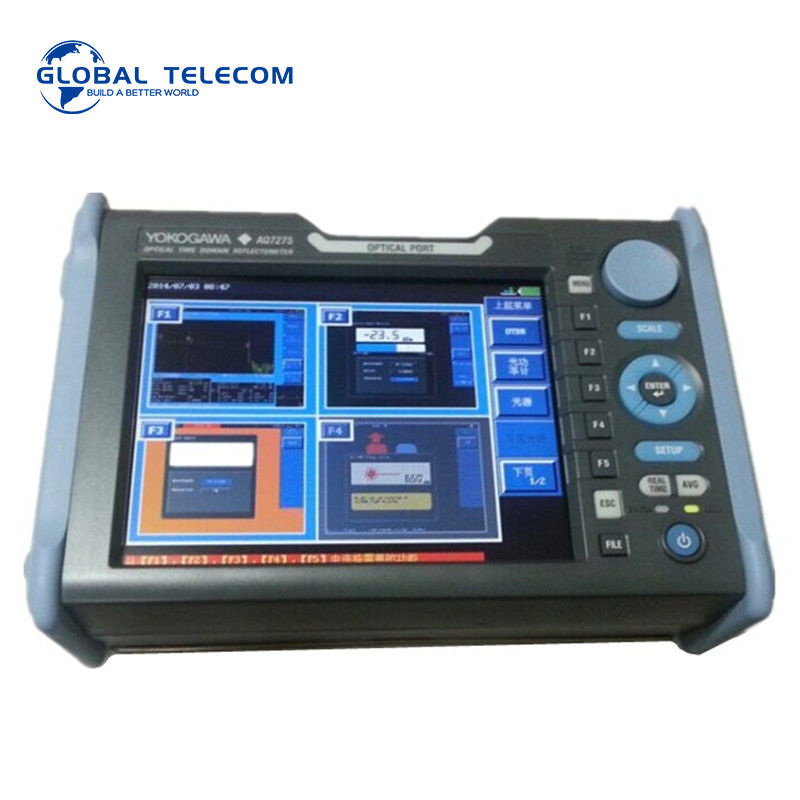

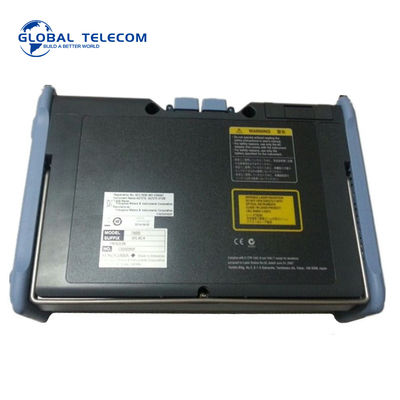

45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer

45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer

45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer
45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer 45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer 45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer

Large Image :  45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer Get Best Price

Product Details:

Place of Origin: China
Brand Name: Yokogawa
Certification: CE/ROSH/IOS9001
Model Number: AQ7275

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: stander packing
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500sets
Detailed Product Description
Type: Testers &Tools No. Of Fiber: 1.
Dynamic Range: 45dB Battery Operating Time: 6 Hours
Battery Recharge Time: 5 Hours Storage Temperature: -20 To 60°C
Weight: 2.8kg Dimension: 287 X 197 X 85mm
Humidity: 85% RH Or Less (no Condensation) Rated Supply Frequency: 50-60Hz
High Light:

45dB OTDR Yokogawa AQ7275

,

45dB AQ7275 Optical Time Domain Reflectometer

,

OTDR Yokogawa AQ7275 45dB

Optical Time Domain Reflectometer Yokogawa AQ7275 YOKOGAWA OTDR





Produst Function:

  • Improved Wavelength Quality Increase the efficiency of fiber installation & maintenance
  • Event Dead Zone 0.8 m
    Accompanying the rapid proliferation of FTTH is a growing need for detection of reflective events arising from short distance mechanical connections. The AQ7275’s short event dead zone enables detection of closely spaced events in cables installed in offices and customer premises.
  • High Dynamic Range up to 40 dB
    The newly added 3-wavelength model (735037) and 4-wavelength model (735040) can achieve
    the dynamic range of 40 dB. This high dynamic range is effective in measuring a transmission
    line consisting of long fiber cables and a splitter with a large loss.
  • Quick Startup within 10 Seconds
    Now measurements can be started quickly upon arrival at the site. 10 seconds to power-up
    from completely OFF to fully ON! With such a fast power-up time, battery life can be extended by turning the power off while not in use at the job site without any concern about the power-up time when the next job is ready. It’s ready when you’re ready!

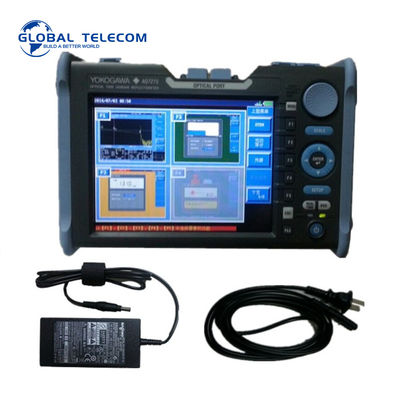

45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer 0

Typical Model:

Applicable Wavelength Dynamic Model Descriptions
fiber   range
fiber 1650nm 30dB 735031 1650nm model, supporting maintenance wavelength of 1650nm including 1310/1550nm cut filter
SMF 1310/1550nm 34/32dB 735032 Standard model for installation and maintenance of FTTH
1310/1550nm 40/38dB 735033 Standard model for installation and maintenance of Metro and Access network
1310/1550nm

43/41dB

45/43dB(typ)

735034 High dynamic range model for installation and maintenance of Core and Metro network
1310/1490/1550nm 34/30/32dB 735035 3-wavelength model for PON system, supporting 1490nm
1310/1550/1625nm 40/38/33dB 735036 Three-wavelength model, supporting a maintenance wavelength of 1625nm including 1310/1550nm cut filter
1310/1550/1650nm 40/38/30dB 735037 Three-wavelength model, supporting a maintenance wavelength of 1650nm including 1310/1550nm cut filter
1310/1550/1625nm 40/38/36dB 735038 Three-wavelength model, supporting a maintenance wavelength of 1625nm
MMF SMF

850/1300nm

1310/1550nm

22.5/24dB (62.5GI)

21.5/23dB (50GI)

40/38dB (SMF)

735041 Four-wavelength model for installation and maintenance of LAN and FTTH with support for both multimode and single mode fiber. Dynamic range is specific ed when measuring 50GI fiber.



Common Specification:
OTDR Measurement Function
Distance measurement Displays up to eight digits of the relative one-way distance between two arbitrary points on the trace
Loss measurement Displays one-way loss in steps o, f 0.001 dB to a maximum of 5 digits.
Displays the one-way loss, loss per unit length, and splice loss between any two given points on the waveform
Return loss measurement Measures return loss and total return loss of a fiber cable or between two arbitrary points on the trace
OTDR Analysis Functions
Analysis functions Multi trace analysis, 2 way trace analysis, differential trace analysis, section analysis
Internal Memory
Memory capacity 1000 waveforms or more
Can store measured waveforms, and measurement conditions
Display
Display 8.4-inch color TFT LCD
Total number of pixels 640 (horizontal) * 480 (vertical)
External Interface
USB USB1.1 Type A and Type B, one each
Type A: For external memory or external printer
Type B: For connecting to an external
PC for remote control or access to the OTDR’s internal memory.
Optical I/O port
Connector type SC (fixed), FC (fixed), SC universal adapter,
FC universal adapter, No universal adapter (base)
Number of port 1 or 2*



General Specification:

Laser safety standards class 1 M (IEC60825-1:2001)
Safety standard EN61010-1
Emission EN61326 Class A
Immunity EN61326 Annex A
Operating environment 0 to 45°C
Temperature (0 to 35°C when charging the battery)
Humidity 85% RH or less (no condensation)
Storage temperature -20 to 60°C
Battery Operation time 6 hours*1
Recharge time 5 hours*2
AC adapter
Rated supply voltage 100 to 240 VAC
Rated supply frequency 50 to 60 Hz
Power consumption Max 70 W (when battery charging, and optional printer printing)
Dimensions (W) 287 * (H) 197 * (D) 85 mm (not including projections or options)
Weight Approx. 2.8 kg (not including options)



45dB OTDR Yokogawa AQ7275 Optical Time Domain Reflectometer 1
